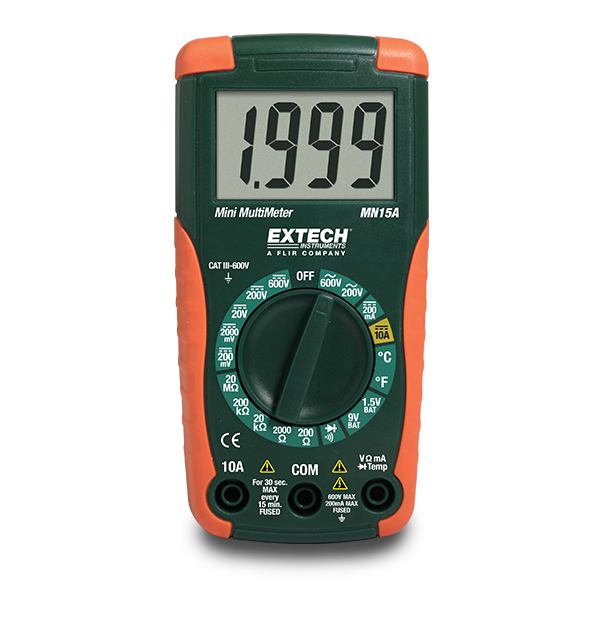

Extech MN15A
Digital Mini MultiMeter
Small on size and configured with vital functionality, the compact, manual-ranging Extech MN15A Digital Mini Multimeter is a popular choice for anyone who prefers a smaller meter they can carry in a pocket or tool belt. Handy for quick testing, use it to measure AC/DC voltage and DC current, as well resistance with functions for testing diodes and checking for continuity. Plus, the battery test function lets you quickly check the condition of 1.5 V and 9 V batteries. The MN15A comes with a built-in stand, 9 V battery, test leads, and a general purpose temperature probe.
Especificaciones
| Especificaciones generales | |
|---|---|
| Corriente CC | 10A |
| Corriente CC, resolución máx. | 0.1mA |
| Precisión básica de corriente CD | ±1.2% |
| Precisión básica de voltaje CA | ±1.2% |
| Precisión básica de voltaje CD | ±0.5% |
| Prueba de batería | 9V & 1.5V Batteries |
| Resistencia | 20MΩ |
| Resistencia, resolución máx. | 0.1Ω |
| Temperatura (tipo K), resolución máx. | -4 to 1400°F (-20 to 750°C) |
| Temperatura (tipo N) | ±(3% of reading + 9°F/5°C) |
| Temperatura (tipo N), precisión básica | 0.1 ° |
| Voltaje CA | 600V |
| Voltaje CA, resolución máx. | 0.1V |
| Voltaje CC | 600V |
| Voltaje CC, resolución máx. | 0.1mV |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Categoría de seguridad | CATIV - 600V |
| Certificaciones | CE, ETL |
| Dimensiones | 5.43 × 2.83 × 1.5" (138 × 72 × 38mm) |
| Garantía | 2 years |
| Peso | 5.4oz (153g) |
Recursos y asistencia
Datasheet
Extech MN15A-MN16A Datasheet
Certification
Extech MN15A Declaration of Conformity
User Manual
Extech MN15A User Manual
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
