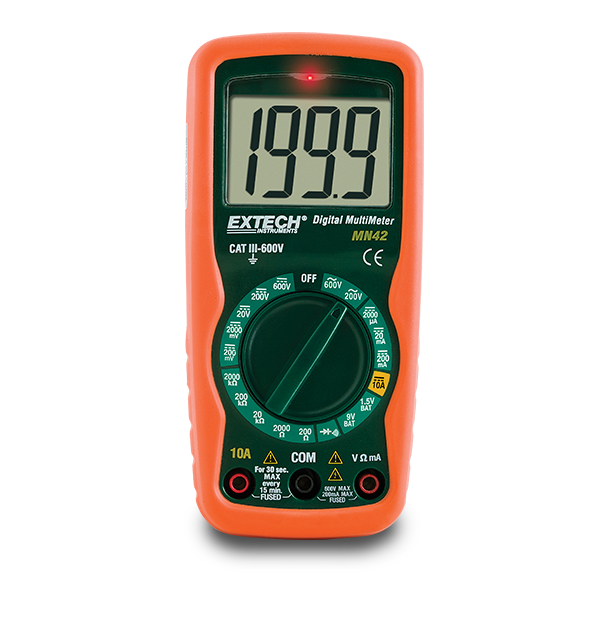

Extech MN42
8 Function Compact MultiMeter + NCV
This product is discontinued.
We recommend the Extech EX310 as a great replacement.
Need support with the Extech MN42? Check out our support resources below.
The compact, manual-ranging Extech MN42 Compact Multimeter is equipped with capabilities a tradesman or technician can use every day, while also perfect for any hobbyist, hacker/maker, or DIYer working on home improvement and A/V projects. Also included is a built in, non contact voltage detector (from 100 VAC to 600 VAC). Freely measure AC/DC voltage, DC current, and resistance, as well as conduct continuity, diode, and battery test. Complete with test leads, 9 V battery, and carrying case.
Especificaciones
| Especificaciones generales | |
|---|---|
| Continuidad | Yes |
| Corriente CC | 10A |
| Corriente CC, resolución máx. | 1µA |
| Detector de voltaje sin contacto (NCV) | 100 to 600VAC |
| Prueba de batería | 1.5V / 9V |
| Prueba de diodos | Yes |
| Resistencia | 2MΩ |
| Resistencia, resolución máx. | 0.1Ω |
| Voltaje CA | 600V |
| Voltaje CA, resolución máx. | 0.1V |
| Voltaje CC | 600V |
| Voltaje CC, resolución máx. | 0.1mV |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Categoría de seguridad | CATIII - 600V |
| Certificaciones | CE |
| Dimensiones | 5.9 × 2.75 × 1.8" (150 × 70 × 48mm) |
| Garantía | 2 years |
| Pantalla | 2000-count segment LCD |
| Peso | 9oz (255g) |
Recursos y asistencia
Datasheet
Extech MN42-MN47 Datasheet
User Manual
Extech MN42 User Manual
