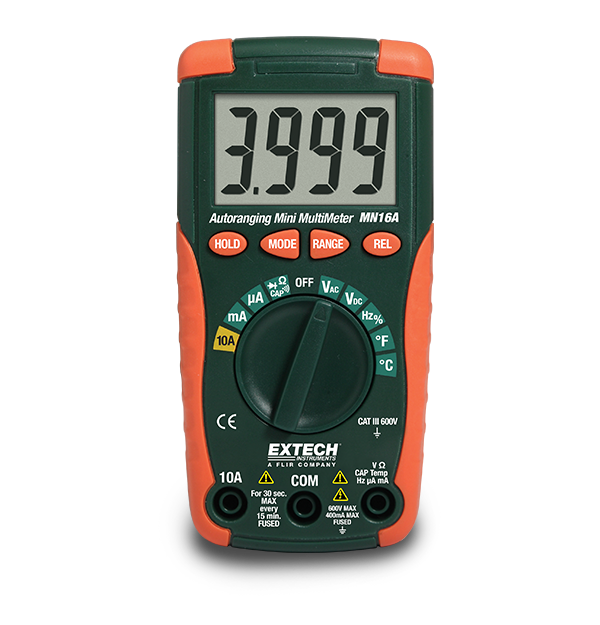

Extech MN16A
Digital Mini MultiMeter
This product is discontinued.
We recommend the Extech MN36 as a great replacement.
Need support with the Extech MN16A? Check out our support resources below.
The Extech MN16A is a Digital Mini Multimeter. It measures AC/DC voltage and current, resistance, capacitance, frequency, continuity, diode test, Type K temperature, and duty cycle. In addition, it has an auto power off with disable feature. Measurements are viewed on a large, easy to read LCD display. Product complete with two AAA batteries, general purpose Type K bead wire probe, and test leads.
Especificaciones
| Especificaciones generales | |
|---|---|
| Capacitancia | 100µF |
| Capacitancia, resolución máx. | 0.01nF |
| Ciclo de trabajo | 0.1 to 99.9% |
| Corriente CA | 10A |
| Corriente CA, resolución máx. | 0.1µA |
| Corriente CC | 10A |
| Corriente CC, resolución máx. | 0.1µA |
| Frecuencia | 5MHz |
| Frecuencia, resolución máx. | 0.001Hz |
| Precisión básica de corriente CA | ±1.8% |
| Precisión básica de corriente CD | ±1.5% |
| Precisión básica de frecuencia | ±1.2% |
| Precisión básica de voltaje CA | ±1.5% |
| Precisión básica de voltaje CD | ±1.2% |
| Precisión básica del ciclo de trabajo | ±1.2% |
| Resistencia | 40MΩ |
| Resistencia, resolución máx. | 0.1Ω |
| Temperatura (tipo K), resolución máx. | -4 to 1400°F (-20 to 750°C) |
| Temperatura (tipo N) | ±(3% of reading + 9°F/5°C) |
| Temperatura (tipo N), precisión básica | 0.1 ° |
| Voltaje CA | 600V |
| Voltaje CA, resolución máx. | 0.1mV |
| Voltaje CC | 600V |
| Voltaje CC, resolución máx. | 1mV |
| Detalles adicionales | |
|---|---|
| Alimentación | 2 × AAA (1.5V) batteries |
| Categoría de seguridad | CATIV - 600V |
| Certificaciones | CE, ETL |
| Dimensiones | 5.43 × 2.83 × 1.5" (138 × 72 × 38mm) |
| Garantía | 2 years |
| Peso | 5.4oz (153g) |
Recursos y asistencia
Datasheet
Extech MN15A-MN16A Datasheet
Certification
Extech MN16A Declaration of Conformity
User Manual
Extech MN16A User Manual
