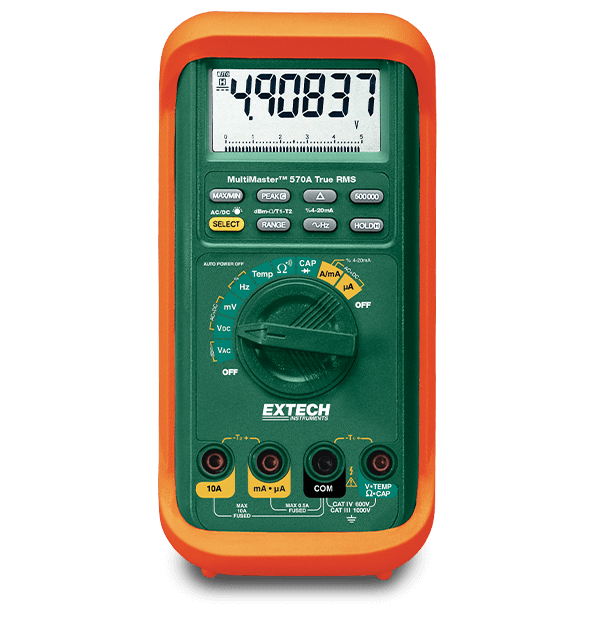

Extech MM570A
MultiMaster® High-Accuracy Multimeter
The Extech MM570A is a High-Accuracy Multimeter with 0.02% basic DCV accuracy and up to 100 kHz True RMS ACV bandwidth. The MM570A has special True RMS combination AC/DC function for measurements of rectified AC (non-symmetrical) voltage and current waveforms. Features include 4 mA to 20 mA readings, displayed as 0-100% for process current measurements. Like other quality multimeters, it includes functions like dual Type K temperature inputs, capacitance, frequency, resistance, continuity, duty cycle, and diode tests. with. Additionally it has min/max recording with auto ranging, auto power off, relative, hold, and a peak function which captures transient pulses. Optional Windows® compatible PC communication software and optically isolated cable. Complete with test leads, temperature probe, protective holster with stand, and 9 V battery.
Especificaciones
| Especificaciones generales | |
|---|---|
| Capacitancia | 50nF to 9999µF |
| Capacitancia, resolución máx. | 0.01nF |
| Ciclo de trabajo | 0.1% to 99.99% |
| Ciclo de trabajo, resolución máx. | 0.01% |
| Corriente CA | 500µA, 5000µA, 50mA, 500mA, 5A, 10A |
| Corriente CA, resolución máx. | 0.01µA |
| Corriente CC | 500µA, 5000µA, 50mA, 500mA, 5A, 10A |
| Corriente CC, resolución máx. | 0.01µA |
| Frecuencia | Electrical: 5Hz to 200kHz, Electronic: 5Hz to 2MHz |
| Frecuencia, resolución máx. | 0.0001Hz |
| Precisión básica de corriente CA | ±(0.7% + 50 digits) |
| Precisión básica de corriente CD | ±(0.1% + 20 digits) |
| Precisión básica de frecuencia | ±(0.002% + 4 digits) |
| Precisión básica de voltaje CA | ±(0.4% + 40 digits) |
| Precisión básica de voltaje CD | ±(0.02% + 2 digits) |
| Precisión básica del ciclo de trabajo | ±(3 digits/kHz + 2 digits) |
| Resistencia | 500Ω, 5kΩ, 50kΩ, 500kΩ, 5MΩ, 50MΩ |
| Resistencia, resolución máx. | 0.01Ω |
| RMS real | Yes |
| Temperatura (tipo K), resolución máx. | -58 to 1832 °F (-50 to 1000 °C ) |
| Temperatura (tipo N) | ±(0.3% + 2°F/1°C) |
| Temperatura (tipo N), precisión básica | 0.1°F/°C |
| Voltaje CA | 500mV, 5V, 50V, 500V, 1000V |
| Voltaje CA, resolución máx. | 0.01mV |
| Voltaje CC | 500mV, 5V, 50V, 500V, 1000V |
| Voltaje CC, resolución máx. | 0.01mV |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Categoría de seguridad | CATIV - 600V |
| Certificaciones | CE, UL |
| Dimensiones | 7.32 × 3.42 × 1.39" (186 × 87 × 35.5mm) |
| Garantía | 3 years |
| Peso | 0.75lb (340g) |
Recursos y asistencia
Certification
Extech MM570A Declaration of Conformity
Datasheet
Extech MM560A-MM570A Datasheet
User Manual
Extech MM560A MM570A User Manual
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
