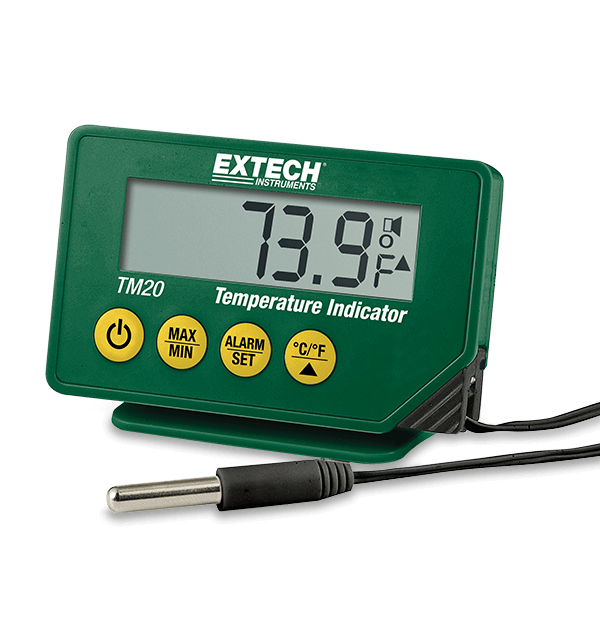

Extech TM20
Compact Temperature Indicator
The Extech TM20 is a waterproof Compact Temperature Indicator with a stainless steel probe. It includes 20 mm (0.78 in) stainless steel probe with 2.9 m (9.6 ft) cable. The TM20 measures temperature from -40°C to 70°C (-40°F to 158°F). Complete with foot stand, temperature sensor, and a CR2032 3 V button battery. CE certified.
Specifications
| General | |
|---|---|
| Cable Length | 209m (9.6 ft.) |
| Temperature (RTD) | -40 to 70 °C ( -40 to 158 °F) |
| Temperature (RTD) Basic Accuracy | 0.5°C/0.9°F (0 to 24°C / 32 to 75°F), 1.0°C/1.8°F (-20 to -1°C and 25 to 49°C / -4 to 31°F and 76 to 120°F), 2.0°C/3.6°F (-40 to -21°C and 50 to 200°C / -40 to -5°F and 121 to 392°F) |
| Temperature (RTD) Max Resolution | 0.1 °C/ °F |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 3.4 × 2.2 × 1.2" (86 × 57 × 30mm) |
| IP Rating | IP65 |
| Power | 1 × CR2032 (3V) battery |
| Warranty | 2 years |
| Weight | 3.2oz (90g) |
Resources & Support
User Manual
Extech TM20 User Manual GB
User Manual
Extech TM20 User Manual
Certification
Extech TM20 Declaration of Conformity
Datasheet
Extech TM20-TM25 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
