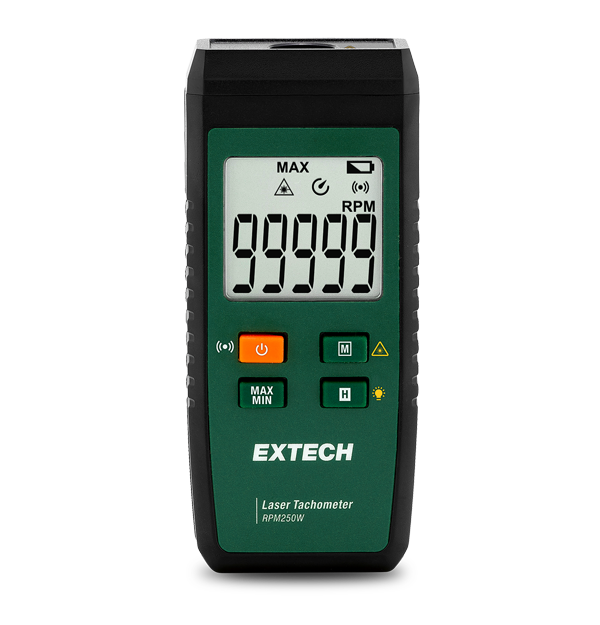

Extech RPM250W

Laser Tachometer with Connectivity to ExView® App

The Extech RPM250W is a compact Laser Tachometer with Bluetooth® connectivity, which allows building and maintenance professionals to view and share revolutions per minute (RPM) data of rotating objects directly from a mobile device using the free ExView® app. With the capability to capture data, display trends, set visual and audio alarms, and send reports, users can gain deeper insights on equipment health.

View data on both the large backlit LCD display and from iOS® or Android™ mobile devices using the ExView app via Bluetooth.

Take non-contact RPM measurements of rotating objects up to 500 mm (1.64 ft) and count up to 99,000; freeze the display with ‘data hold’ feature.

Export .CSV data; create and send PDF reports including photos of the measurement location taken with a connected smartphone or tablet camera.

Specifications

General
Measurement Angle	±30° from perpendicular
Measurement Distance	50 to 500 mm
Revolution Count (Photo)	0 to 99999
Revolution Count (Photo) Basic Accuracy	±2 digits
Revolution Count (Photo) Max Resolution	1.0
Rotation Speed [Photo]	10 to 99999 rpm
Rotation Speed [Photo] Basic Accuracy	±0.04%
Rotation Speed [Photo] Max Resolution	0.1 rpm (<9999.9 rpm), 1 rpm (≥10000 rpm)
Sampling Time (Photo)	1 s (>120 rpm)
Sensor Type	Photodiode and laser tube
Wireless Connectivity	Bluetooth® (via ExView iOS/Android mobile app)
Wireless Transmission Range	up to 90 m line of sight

Additional Details
Certifications	CE, FCC, UKCA, IEC60825-1:2014 CLASS 3R
Dimensions	4.7 × 2.1 × 1.1 in (120 × 53 × 28 mm)
Display	5-digit (99999-count) backlit segment LCD display
Operating Conditions	32 to 104°F (0 to 40°C),≤80% RH
Power	3 × AAA (1.5V) batteries
Warranty	2 years
Weight	2.9 oz (81.6 g)
