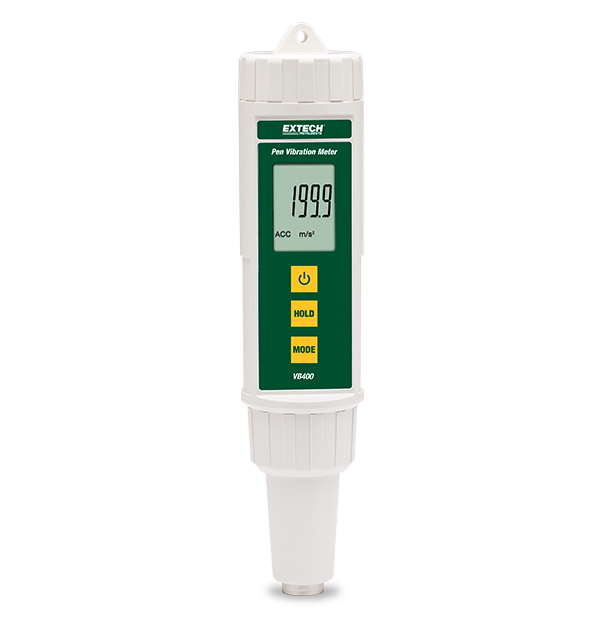

The Extech VB400 Pen Vibration Meter is designed to provide easy and accurate velocity and acceleration measurements on industrial machinery. Its measures RMS Acceleration and Velocity with metric and imperial units of measure. The VB400 has a wide frequency range from 10 Hz to 1 kHz and basic accuracy of ± (5% + 2 digits). Additional features include zero adjustment, data hold, and a low battery indicator. Water and dust resistant to IP65. Complete with test pin tip, magnetic base, 4 AAA batteries, and pouch case.
Especificações
| Especificações gerais | |
|---|---|
| Aceleração | 656ft/s², 200m/s², 20.39g |
| Largura de banda de frequência | 10 Hz to 1 KHz |
| Precisão básica da aceleração | ±(5% of reading + 2 digits) |
| Precisão básica da velocidade | ±(5% of reading + 2 digits) |
| Resolução máx. da aceleração | 1ft/s², 0.1m/s², 0.01g |
| Resolução máx. da velocidade | 0.02in/s, 0.01cm/s, 0.1mm/s |
| Taxa de Amostragem | Approx. 1 second |
| Velocidade | 7.87in/s, 2.00cm/s, 200mm/s |
| Detalhes adicionais | |
|---|---|
| Certificações | CE |
| Classificação IP | IP65 |
| Dimensões | 6.9 × 1.6 × 1.3" (175 × 40 × 32 mm); sensing head: 9 mm diameter × 30 mm |
| Display | 20 mm × 28 mm segment LCD |
| Garantia | 2 years |
| Peso | 0.53 lb (240 g) |
| Potência | 4 × AAA (1.5V) batteries |
Recursos e suporte
User Manual
Extech VB400 User Manual
Certification
Extech VB400 Declaration of Conformity
Datasheet
Extech VB400 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
