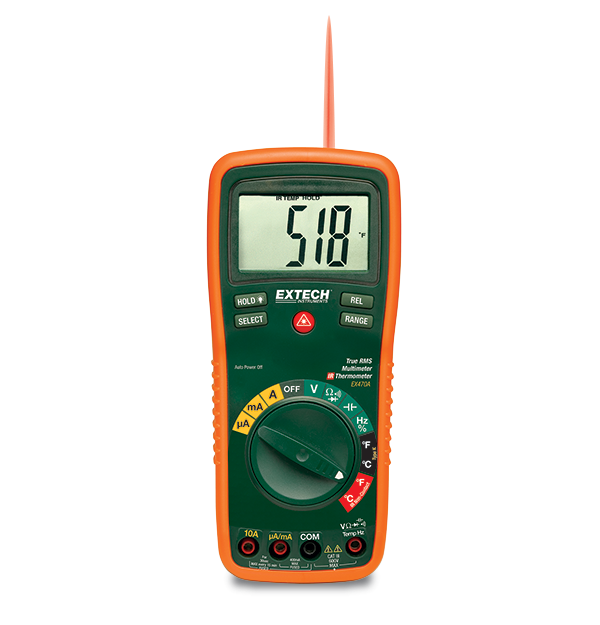

Extech EX470A
12 Function True RMS Professional MultiMeter + InfraRed Thermometer
The Extech EX470A True RMS Multimeter and Infrared Thermometer with capacitance, frequency, and duty cycle measurements and 2 Type K remote probes is the perfect meter for HVAC or plant maintenance. The IR thermometer measures surface temperature from -20°C to 270°C (-4°F to 518°F) without contact. The built-in laser pointer centers the measuring area. Its functions include AC and DC Voltage to 600 V, AC and DC current to 10 A, resistance to 40 MOhm, continuity, and diode test. It also includes a Type K thermometer for contact or air temperature measurements from -20°C to 750°C (-4°F to 1832°F). The meter comes complete with test leads, 9 V battery, protective holster, adjustable tilt stand, and a velcro hanging strap.
Especificações
| Especificações gerais | |
|---|---|
| Capacitância | 0.01nF to 100µF |
| Ciclo de Trabalho | 0.1% to 99.9% |
| Continuidade | Yes |
| Corrente Alternada (CA) | 0.1µA to 10A |
| Corrente Contínua (CC) | 0.1µA to 10A |
| Frequência | 0.001Hz to 10MHz |
| Precisão básica da temperatura (IV) | 58 to 518°F (-50 to 270°C) |
| Precisão básica da tensão CC | ±0.3% |
| Resistência | 0.1Ω to 40MΩ |
| Resolução máx. da temperatura (tipo K) | -4 to 1382°F (-20 to 750°C) |
| Tensão de CA | 0.1mV to 600V |
| Tensão de CC | 0.1mV to 600V |
| Teste de Diodo | Yes |
| True RMS | Yes |
| Detalhes adicionais | |
|---|---|
| Categoria de Segurança | CATIII - 600V |
| Certificações | CE, UL |
| Dimensões | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| Garantia | 3 years |
| Peso | 0.75lbs (342g) |
| Potência | 1 × 9V battery |
Recursos e suporte
Certification
Extech EX470A Declaration of Conformity
Datasheet
Extech EX4xxA Datasheet
