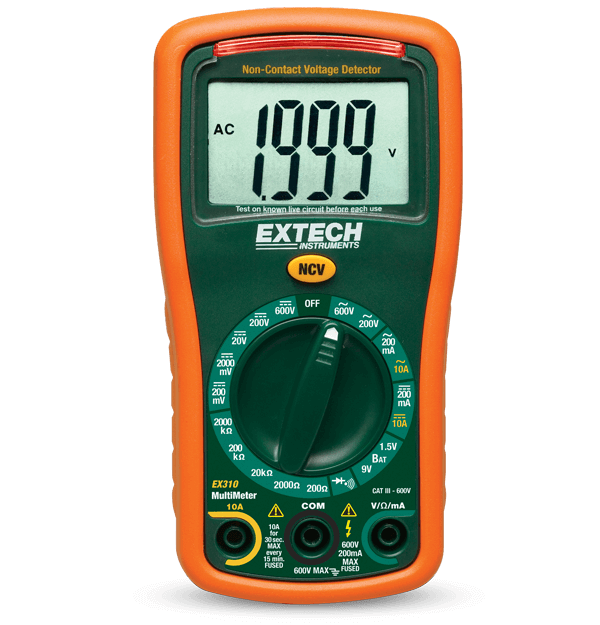

Extech EX310
9 Function Mini MultiMeter + Non-Contact Voltage Detector
The Extech EX310 is a compact manual ranging multi meter which features an extra-large 2000 count display and built-in non-contact AC voltage detector (NCV). AC/DC Voltage & Current, Resistance, Diode/Continuity measurements. Includes a battery test function (1.5 Volt and 9 Volt). The rubber holster protects the meter. UL listed Cat III – 600 Volt safety rating. Includes test leads, 9 Volt battery, and tilt stand.
Especificações
| Especificações gerais | |
|---|---|
| Continuidade | Yes |
| Corrente Alternada (CA) | 0.1mA to 10A |
| Corrente Contínua (CC) | 0.1mA to 10A |
| Detector de tensão sem contato (NCV) | 100 to 600VAC |
| Precisão básica de UVA | ±4% full scale |
| Resistência | 0.1Ω to 2000kΩ |
| Resolução máx. de UVA | 0.001mW/cm² |
| Tensão de CA | 0.1V to 600V |
| Tensão de CC | 0.1mV to 600V |
| Teste de Diodo | Yes |
| UVA | 0 to 1.999mW/cm², 2 to 20.00mW/cm² |
| Detalhes adicionais | |
|---|---|
| Categoria de Segurança | CATII-1000V,CATIII-600V |
| Certificações | CE |
| Dimensões | 5.5 × 2.3 × 1" (141 × 58 × 25mm) |
| Display | 2000-count segment LCD |
| Garantia | 2 years |
| Peso | 5.6oz (160g) |
| Potência | 3 × AAA (1.5V) batteries |
Recursos e suporte
Certification
Extech EX310 Declaration of Conformity
User Manual
Extech EX310 User Manual
Datasheet
Extech EX3xx Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
