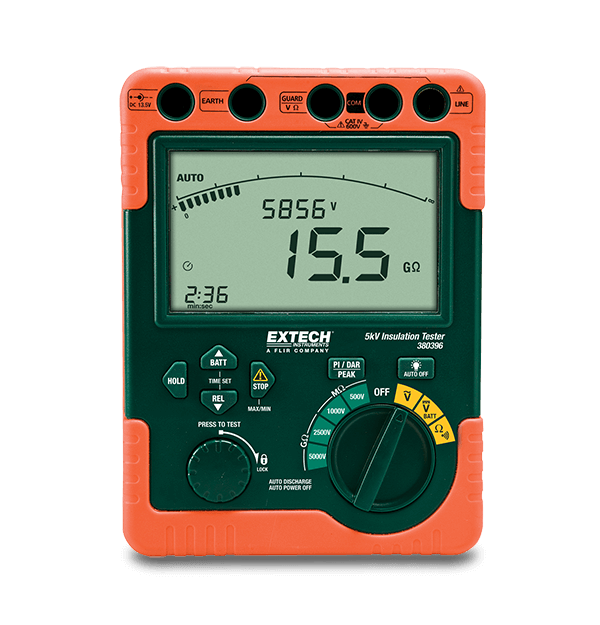

Extech 380396
High Voltage Digital Insulation Tester (220V)
With the Extech 380396, measure insulation resistance to 60 GΩ with test voltages of 500 V, 1000 V, 2500 V, and 5000 V. It features several measurements including polarization index (PI), dielectric absorption ratio (DAR), and AC/DC voltage to 600 V with a min/max function. It also has peak and relative functions, as well as a 1 to 15 minute timer function for IR measurements. Comes with test leads, eight C batteries, 220 V AC adaptor, heavy duty carrying case, and user manual.
Especificações
| Especificações gerais | |
|---|---|
| Continuidade | 50Ω |
| Precisão básica da resistência de isolamento | ±2.5% of reading |
| Precisão básica da tensão CA | ±1% of reading |
| Precisão básica da tensão CC | ±1% of reading |
| Resistência | 0 to 600Ω |
| Resistência de Isolamento | 6MΩ, 60MΩ, 600MΩ, 6GΩ, 60GΩ |
| Tensão de CA | 0 to 600V |
| Tensão de CC | 0 to 600V |
| Tensão de teste de isolamento | 500V, 1000V, 2500V, 5000V |
| Detalhes adicionais | |
|---|---|
| Categoria de Segurança | CAT IV-600V |
| Certificações | CE |
| Dimensões | 7.8 × 5.8 × 3.4" (198 × 148 × 86mm) |
| Display | Backlit segment LCD with bargraph |
| Garantia | 2 years |
| Peso | 3.2lb (1438g) |
| Potência | 8 × C (1.5V) batteries, 220V AC adaptor |
Recursos e suporte
Certification
Extech 380396 Declaration of Conformity
User Manual
Extech 380395 380396 User Manual GB
User Manual
Extech 380395 380396 User Manual
Datasheet
Extech 380395 380396 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
