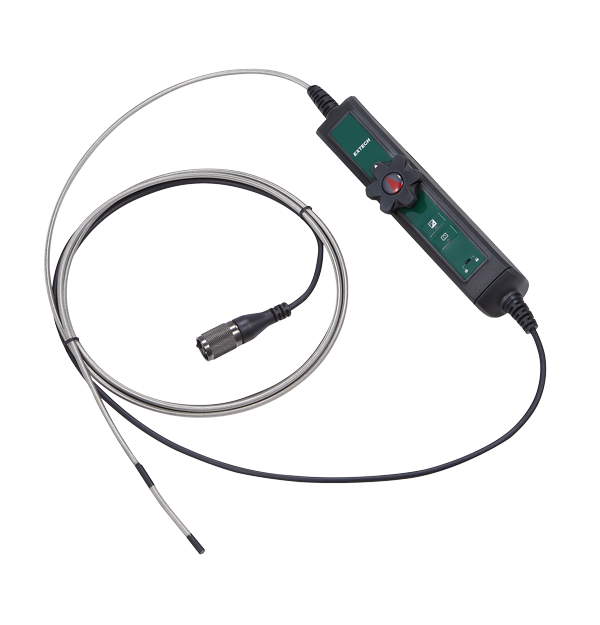

2-Way Articulating 4.5 mm × 1.5 m Camera Probe for the Extech HDV700-Series High-Performance Videoscope
Specifications
| Imaging & Optical | |
|---|---|
| Articulation | 2 ways 180° |
| Depth of Field | 10 mm to infinity |
| Diameter | 4.5 mm |
| Field of View | 90˚ |
| Field of view (FOV) | 90˚ |
| Frame Rate | 30 fps |
| Resolution | 640 × 480 |
| Environmental & Certifications | |
|---|---|
| Certifications | CE, UKCA |
| Encapsulation | Probe Tip : IP67 Approved for use in brake and transmission fluid, diesel fuel, unleaded gasoline, engine oil, and CPC hydraulic fluid (46AWS) |
| Operating Temperature | -10˚C to 60˚C (14˚F to 140˚F) |
| Warranty | 2 years |
| General | |
|---|---|
| Material | Stainless steel mesh cable |
| Probe Length | 1.5 m |
Resources & Support
User Manual
Extech HDV7C-A2-45-15 User Manual
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
