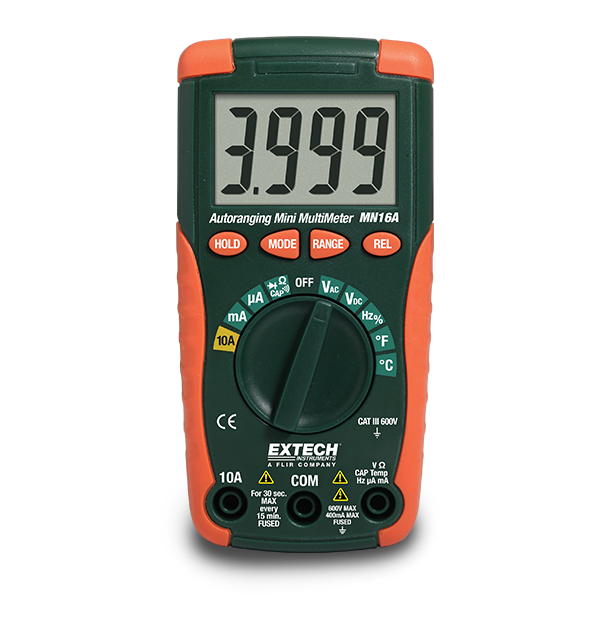

Extech MN16A
Digital Mini MultiMeter
This product is discontinued.
We recommend the Extech MN36 as a great replacement.
Need support with the Extech MN16A? Check out our support resources below.
The Extech MN16A is a Digital Mini Multimeter. It measures AC/DC voltage and current, resistance, capacitance, frequency, continuity, diode test, Type K temperature, and duty cycle. In addition, it has an auto power off with disable feature. Measurements are viewed on a large, easy to read LCD display. Product complete with two AAA batteries, general purpose Type K bead wire probe, and test leads.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Frequenz | 5MHz |
| Frequenz Grundgenauigkeit | ±1.2% |
| Frequenz Max. Auflösung | 0.001Hz |
| Gleichspannung | 600V |
| Gleichspannung Grundgenauigkeit | ±1.2% |
| Gleichspannung Max. Auflösung | 1mV |
| Gleichstrom Grundgenauigkeit | ±1.5% |
| Gleichstrom Max. Auflösung | 0.1µA |
| Gleichstromstärke | 10A |
| Kapazität | 100µF |
| Kapazität Max. Auflösung | 0.01nF |
| Tastgrad | 0.1 to 99.9% |
| Tastgrad Grundgenauigkeit | ±1.2% |
| Temperatur (Typ K) Max. Auflösung | -4 to 1400°F (-20 to 750°C) |
| Temperatur (Typ N) | ±(3% of reading + 9°F/5°C) |
| Temperatur (Typ N) Grundgenauigkeit | 0.1 ° |
| Wechselspannung | 600V |
| Wechselspannung Grundgenauigkeit | ±1.5% |
| Wechselspannung Max. Auflösung | 0.1mV |
| Wechselstrom | 10A |
| Wechselstrom Grundgenauigkeit | ±1.8% |
| Wechselstrom Max. Auflösung | 0.1µA |
| Widerstand | 40MΩ |
| Widerstand Max. Auflösung | 0.1Ω |
| Weitere Details | |
|---|---|
| Abmessungen | 5.43 × 2.83 × 1.5" (138 × 72 × 38mm) |
| Garantie | 2 years |
| Gewicht | 5.4oz (153g) |
| Sicherheitskategorie | CATIV - 600V |
| Stromversorgung | 2 × AAA (1.5V) batteries |
| Zertifizierungen | CE, ETL |
Ressourcen und Support
Datasheet
Extech MN15A-MN16A Datasheet
Certification
Extech MN16A Declaration of Conformity
User Manual
Extech MN16A User Manual
