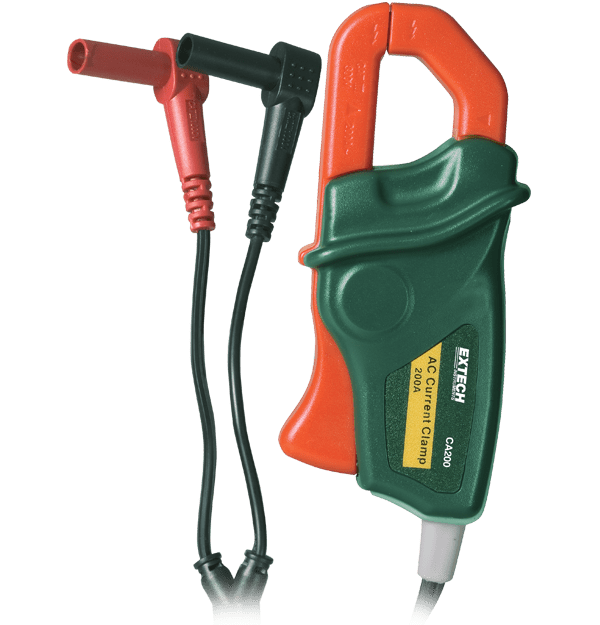

Extech CA200
200A AC Clamp Adaptor
The Extech CA200 is a 200 A AC Clamp Adaptor with 1 mV AC output per amp. It has a 16 mm (0.6 in) clamp jaw and ± 2% accuracy. Comes complete with a built in 163 cm (5.3 ft) cable with banana plugs and a two year warranty.
Technische Daten
| Allgemeine technische Daten | |
|---|---|
| Frequenz | 50/60Hz |
| Wechselstrom | 0 to 200A (1mV per Amp output) |
| Wechselstrom Grundgenauigkeit | ±(2.0% of reading + 0.5A) + accuracy of indicating device |
| Zangenöffnung | 0.62" (16mm) |
| Weitere Details | |
|---|---|
| Abmessungen | 4.3 × 1.9 × 1.3" (111 × 50 × 33mm) |
| Garantie | 2 years |
| Gewicht | 4.5 oz. (129g) |
| Sicherheitskategorie | CATII - 600V, CATIII - 300V |
| Zertifizierungen | CE |
Ressourcen und Support
User Manual
Extech CA200 Bedienungsanleitung
Datasheet
Extech CA200 Datasheet
User Manual
Extech CA200 User Manual GB
