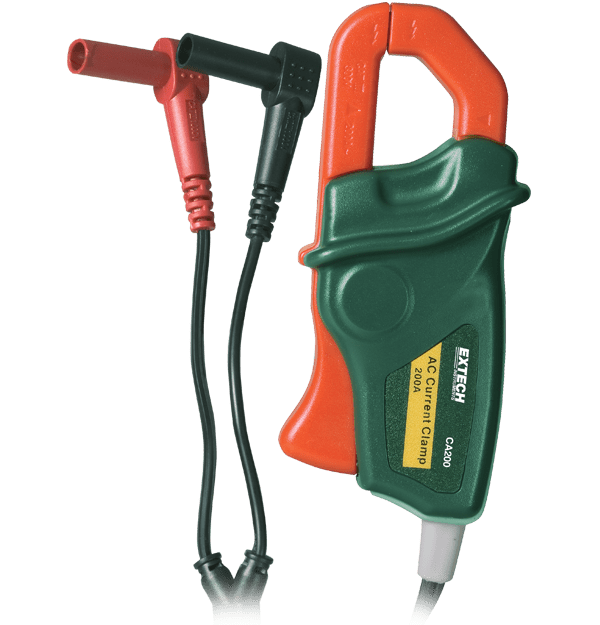

Extech CA200
200A AC Clamp Adaptor
The Extech CA200 is a 200 A AC Clamp Adaptor with 1 mV AC output per amp. It has a 16 mm (0.6 in) clamp jaw and ± 2% accuracy. Comes complete with a built in 163 cm (5.3 ft) cable with banana plugs and a two year warranty.
Especificações
| Especificações gerais | |
|---|---|
| Corrente Alternada (CA) | 0 to 200A (1mV per Amp output) |
| Frequência | 50/60Hz |
| Precisão básica da corrente alternada CA | ±(2.0% of reading + 0.5A) + accuracy of indicating device |
| Tamanho da garra | 0.62" (16mm) |
| Detalhes adicionais | |
|---|---|
| Categoria de Segurança | CATII - 600V, CATIII - 300V |
| Certificações | CE |
| Dimensões | 4.3 × 1.9 × 1.3" (111 × 50 × 33mm) |
| Garantia | 2 years |
| Peso | 4.5 oz. (129g) |
Recursos e suporte
Datasheet
Extech CA200 Datasheet
User Manual
Extech CA200 User Manual GB
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
