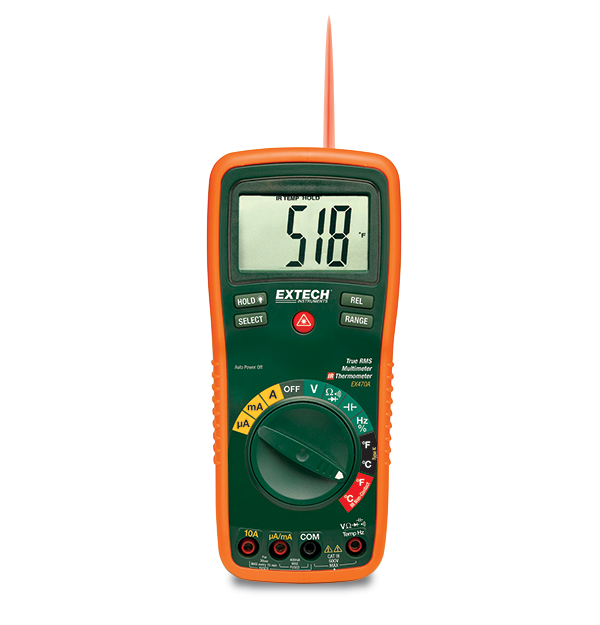

Extech EX470A
12 Function True RMS Professional MultiMeter + InfraRed Thermometer
The Extech EX470A True RMS Multimeter and Infrared Thermometer with capacitance, frequency, and duty cycle measurements and 2 Type K remote probes is the perfect meter for HVAC or plant maintenance. The IR thermometer measures surface temperature from -20°C to 270°C (-4°F to 518°F) without contact. The built-in laser pointer centers the measuring area. Its functions include AC and DC Voltage to 600 V, AC and DC current to 10 A, resistance to 40 MOhm, continuity, and diode test. It also includes a Type K thermometer for contact or air temperature measurements from -20°C to 750°C (-4°F to 1832°F). The meter comes complete with test leads, 9 V battery, protective holster, adjustable tilt stand, and a velcro hanging strap.
사양
| 일반 사양 | |
|---|---|
| AC 전류 | 0.1µA to 10A |
| AC 전압 | 0.1mV to 600V |
| DC 전류 | 0.1µA to 10A |
| DC 전압 | 0.1mV to 600V |
| DC 전압 기본 정확도 | ±0.3% |
| 다이오드 검사 | Yes |
| 사용률 | 0.1% to 99.9% |
| 연속성 | Yes |
| 온도(K형) 최대 해상도 | -4 to 1382°F (-20 to 750°C) |
| 온도(접촉) 기본 정확도 | 58 to 518°F (-50 to 270°C) |
| 저항 | 0.1Ω to 40MΩ |
| 주파수 | 0.001Hz to 10MHz |
| 커패시턴스 | 0.01nF to 100µF |
| 트루 RMS | Yes |
| 추가 정보 | |
|---|---|
| 무게 | 0.75lbs (342g) |
| 보증 | 3 years |
| 안전 범주 | CATIII - 600V |
| 인증 | CE, UL |
| 전원 | 1 × 9V battery |
| 크기 | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
