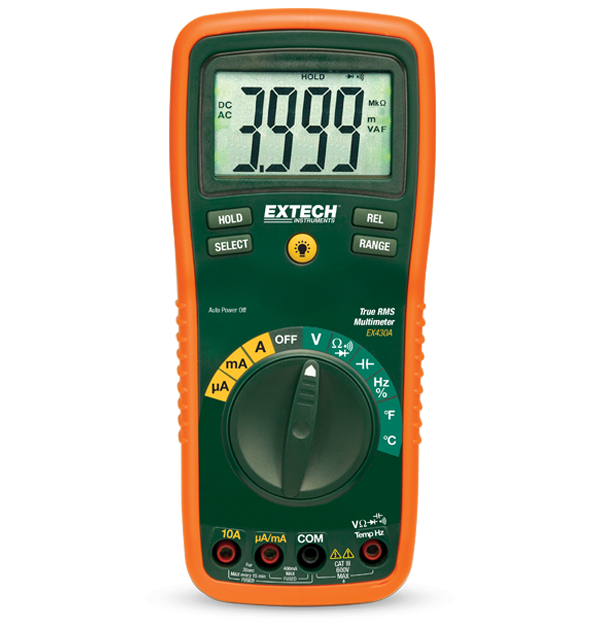

Extech EX430A
11 Function True RMS Professional MultiMeter
The Extech EX430A True RMS autoranging Multimeter (with K Type, capacitance, frequency, and duty cycle) is a professional-grade multimeter capable of performing a wide range of measurements. Functions include AC and DC voltage to 600 V, AC and DC current to 10 A, resistance to 40 MOhm, continuity, and diode test. It also includes a Type K thermometer function for contact or air temperature measurements from -20°C to 750°C (-4°F to 1832°F). Advanced functions include capacitance, frequency, and duty cycle. This meter comes complete with test leads, Type K temperature probe, 9 V battery, protective holster, adjustable tilt stand, and a velcro hanging strap.
사양
| 일반 사양 | |
|---|---|
| AC 전류 | 0.1mA to 10A |
| AC 전류 기본 정확도 | ±0.5% |
| AC 전압 | 1mV to 600V |
| AC 전압 기본 정확도 | ±0.3% |
| DC 전류 | 0.1µA to 10A |
| DC 전류 기본 정확도 | ±0.5% |
| DC 전압 | 0.1mV to 600V |
| DC 전압 기본 정확도 | ±0.5% |
| 다이오드 검사 | Yes |
| 연속성 | Yes |
| 온도(K형) 최대 해상도 | -4 to 1382°F (-20 to 750°C) |
| 저항 | 0.1Ω to 20MΩ |
| 트루 RMS | Yes |
| 추가 정보 | |
|---|---|
| 무게 | 0.75lbs (342g) |
| 보증 | 2 years |
| 안전 범주 | CATIII - 600V |
| 인증 | CE |
| 전원 | 1 × 9V battery |
| 크기 | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
