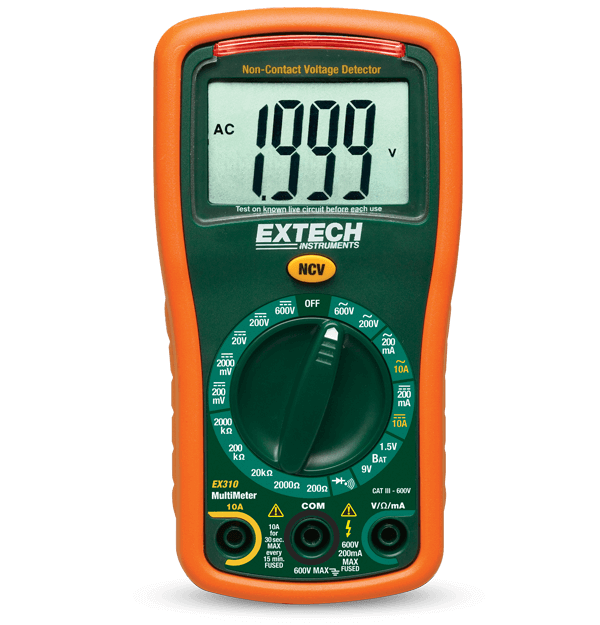

Extech EX310
9 Function Mini MultiMeter + Non-Contact Voltage Detector
The Extech EX310 is a compact manual ranging multi meter which features an extra-large 2000 count display and built-in non-contact AC voltage detector (NCV). AC/DC Voltage & Current, Resistance, Diode/Continuity measurements. Includes a battery test function (1.5 Volt and 9 Volt). The rubber holster protects the meter. UL listed Cat III – 600 Volt safety rating. Includes test leads, 9 Volt battery, and tilt stand.
사양
| 일반 사양 | |
|---|---|
| AC 전류 | 0.1mA to 10A |
| AC 전압 | 0.1V to 600V |
| DC 전류 | 0.1mA to 10A |
| DC 전압 | 0.1mV to 600V |
| UVA | 0 to 1.999mW/cm², 2 to 20.00mW/cm² |
| UVA 기본 정확도 | ±4% full scale |
| UVA 최대 해상도 | 0.001mW/cm² |
| 다이오드 검사 | Yes |
| 비접촉 전압(NCV) 감지기 | 100 to 600VAC |
| 연속성 | Yes |
| 저항 | 0.1Ω to 2000kΩ |
| 추가 정보 | |
|---|---|
| 디스플레이 | 2000-count segment LCD |
| 무게 | 5.6oz (160g) |
| 보증 | 2 years |
| 안전 범주 | CATII-1000V,CATIII-600V |
| 인증 | CE |
| 전원 | 3 × AAA (1.5V) batteries |
| 크기 | 5.5 × 2.3 × 1" (141 × 58 × 25mm) |
