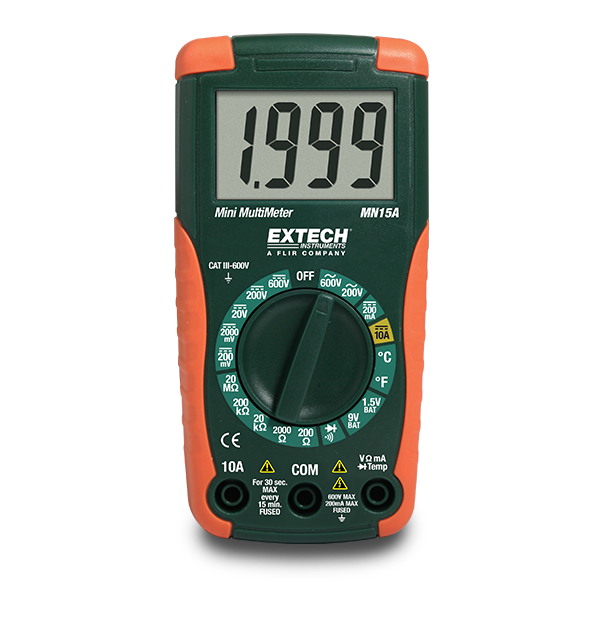

Extech MN15A
Digital Mini MultiMeter
Small on size and configured with vital functionality, the compact, manual-ranging Extech MN15A Digital Mini Multimeter is a popular choice for anyone who prefers a smaller meter they can carry in a pocket or tool belt. Handy for quick testing, use it to measure AC/DC voltage and DC current, as well resistance with functions for testing diodes and checking for continuity. Plus, the battery test function lets you quickly check the condition of 1.5 V and 9 V batteries. The MN15A comes with a built-in stand, 9 V battery, test leads, and a general purpose temperature probe.
Spécifications
| Spécifications générales | |
|---|---|
| Courant CC | 10A |
| Précision de base de la température (type N) | 0.1 ° |
| Précision de base de la tension CA | ±1.2% |
| Précision de base de la tension CC | ±0.5% |
| Précision de base du courant CC | ±1.2% |
| Résistance | 20MΩ |
| Résolution maximale de la résistance | 0.1Ω |
| Résolution maximale de la température (type K) | -4 to 1400°F (-20 to 750°C) |
| Résolution maximale de la tension CA | 0.1V |
| Résolution maximale de la tension CC | 0.1mV |
| Résolution maximale du courant CC | 0.1mA |
| Température (Type N) | ±(3% of reading + 9°F/5°C) |
| Tension CA | 600V |
| Tension CC | 600V |
| Test de la batterie | 9V & 1.5V Batteries |
| Détails supplémentaires | |
|---|---|
| Alimentation | 1 × 9V battery |
| Catégorie de sécurité | CATIV - 600V |
| Certifications | CE, ETL |
| Dimensions | 5.43 × 2.83 × 1.5" (138 × 72 × 38mm) |
| Garantie | 2 years |
| Poids | 5.4oz (153g) |
Ressources et assistance
Datasheet
Extech MN15A-MN16A Datasheet
Certification
Extech MN15A Declaration of Conformity
User Manual
Extech MN15A User Manual
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
