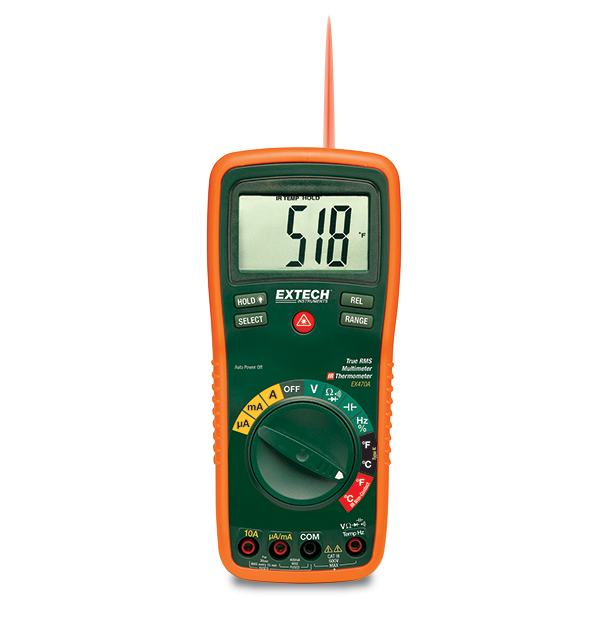

The Extech EX470A True RMS Multimeter and Infrared Thermometer with capacitance, frequency, and duty cycle measurements and 2 Type K remote probes is the perfect meter for HVAC or plant maintenance. The IR thermometer measures surface temperature from -20°C to 270°C (-4°F to 518°F) without contact. The built-in laser pointer centers the measuring area. Its functions include AC and DC Voltage to 600 V, AC and DC current to 10 A, resistance to 40 MOhm, continuity, and diode test. It also includes a Type K thermometer for contact or air temperature measurements from -20°C to 750°C (-4°F to 1832°F). The meter comes complete with test leads, 9 V battery, protective holster, adjustable tilt stand, and a velcro hanging strap.
Spécifications
| Spécifications générales | |
|---|---|
| Capacitance | 0.01nF to 100µF |
| Continuité | Yes |
| Courant CA | 0.1µA to 10A |
| Courant CC | 0.1µA to 10A |
| Fréquence | 0.001Hz to 10MHz |
| Précision de base de la température (IR) | 58 to 518°F (-50 to 270°C) |
| Précision de base de la tension CC | ±0.3% |
| Rapport cyclique | 0.1% to 99.9% |
| Résistance | 0.1Ω to 40MΩ |
| Résolution maximale de la température (type K) | -4 to 1382°F (-20 to 750°C) |
| Tension CA | 0.1mV to 600V |
| Tension CC | 0.1mV to 600V |
| Test de diodes | Yes |
| Valeurs efficaces (TRMS) | Yes |
| Détails supplémentaires | |
|---|---|
| Alimentation | 1 × 9V battery |
| Catégorie de sécurité | CATIII - 600V |
| Certifications | CE, UL |
| Dimensions | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| Garantie | 3 years |
| Poids | 0.75lbs (342g) |
Ressources et assistance
Certification
Extech EX470A Declaration of Conformity
Datasheet
Extech EX4xxA Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
