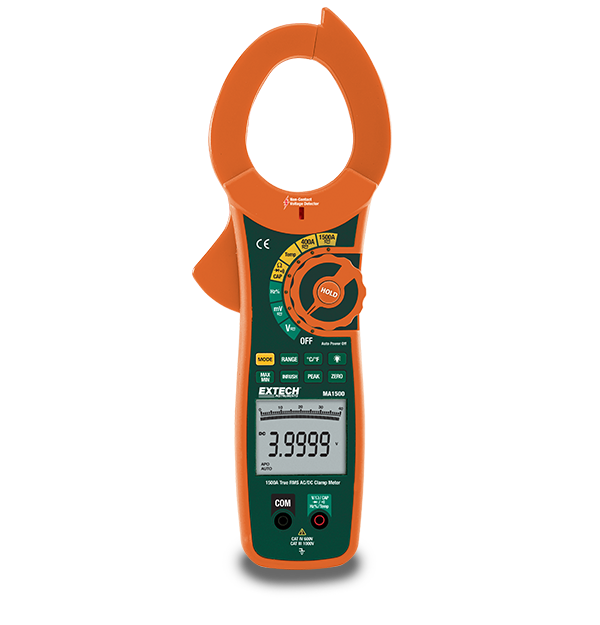

Extech MA1500
1500A True RMS AC/DC Clamp Meter + NCV
The MA1500 is a 1500A True RMS AC/DC Clamp Meter. 2.0 in. (52mm) jaw size for conductors up to 500MCM with True RMS for accurate readings of non-sinusoidal waveforms. Additional features include: Relative Mode for Capacitance Zero and Offset Adjustment, Data Hold, Peak Hold, MIN/MAX, Auto Power Off, and Inrush function to capture transients during motor startup. Complete with test leads, Type K bead wire temperature probe, 9V battery and carrying case.
Specifications
| General | |
|---|---|
| AC Current | 4A, 80A |
| AC Current Basic Accuracy | ±(2.5% of reading + 5 digits) |
| AC Current Max Resolution | 1mA |
| AC Voltage | 400mV to 600V |
| AC Voltage Basic Accuracy | ±(2.0% of reading + 4 digits) |
| AC Voltage Max Resolution | 0.1mV |
| Continuity | Yes |
| DC Current | 4A, 80A |
| DC Current Basic Accuracy | ±(2.5% of reading + 4 digits) |
| DC Current Max Resolution | 1mA |
| DC Voltage | 400mV to 600V |
| DC Voltage Basic Accuracy | ±(1.5% of reading + 3 digits) |
| DC Voltage Max Resolution | 0.1mV |
| Diode Test | Yes |
| Duty Cycle | 5 to 99.9% |
| Duty Cycle Basic Accuracy | ±(1.2% of reading + 3 digits) |
| Duty Cycle Max Resolution | 0.1% |
| Frequency | 5Hz to 10MHz |
| Frequency Basic Accuracy | ±(1.2% of reading + 3 digits) |
| Frequency Max Resolution | 0.001Hz |
| Jaw Size | 0.5" (12mm), conductors up to 3/0 AWG |
| Resistance | 400Ω to 40MΩ |
| Resistance Max Resolution | 0.1Ω |
| Additional Details | |
|---|---|
| Certifications | CE, UL |
| Dimensions | 8.2 × 2.7 × 1.4" (210 × 70 × 37mm) |
| Display | 4000-count segment LCD |
| Safety Category | CAT III-300V |
| Warranty | 2 years |
| Weight | 7oz (200g) |
Resources & Support
Datasheet
Extech MA1500 Datasheet
User Manual
Extech MA1500 User Manual
Certification
Extech MA1500 Declaration of Conformity
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
