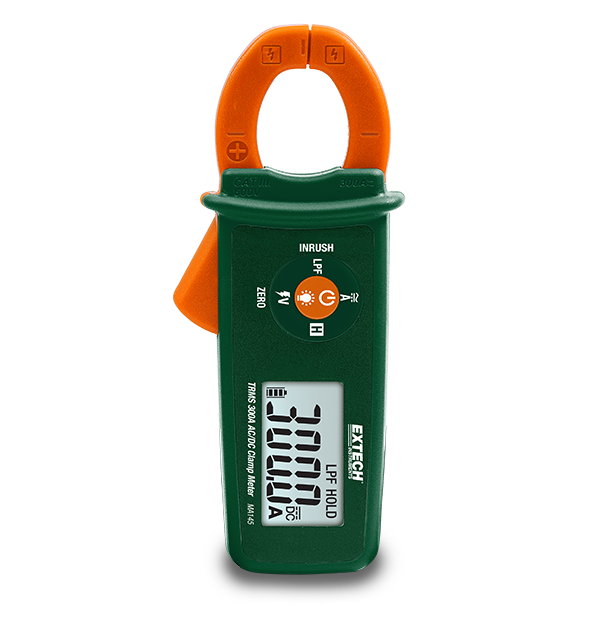

Extech MA145
True RMS 300A AC/DC Clamp Meter
The MA145 is a Compact AC/DC Clamp Meter with NCV detector. This clamp meter takes True RMS measurements for accurate readings of noisy, distorted, or non-sinusoidal waveforms. The MA145 can measure up to 300 A AC and DC. Complete with carrying case and two LR44 batteries. UL listed with a CAT III 600 V safety rating.
사양
| 일반 사양 | |
|---|---|
| AC 전류 | 60A, 300A |
| AC 전류 기본 정확도 | ±1.5% |
| AC 전류 최대 해상도 | 0.01A |
| DC 전류 | 60A, 300A |
| DC 전류 기본 정확도 | ±1.5% |
| DC 전류 최대 해상도 | 0.01A |
| 비접촉 전압(NCV) 감지기 | 80 to 600VAC |
| 턱 크기 | 0.8" (22mm), conductors up to 300MCM |
| 트루 RMS | Yes |
| 추가 정보 | |
|---|---|
| 무게 | 4.9oz (140g) |
| 보증 | 2 years |
| 안전 범주 | CATIII - 600V |
| 인증 | CE, UL |
| 전원 | 2 × LR44 (1.5V) batteries |
| 크기 | 5.8 × 2.4 × 1.2" (147 × 60 × 31mm) |
