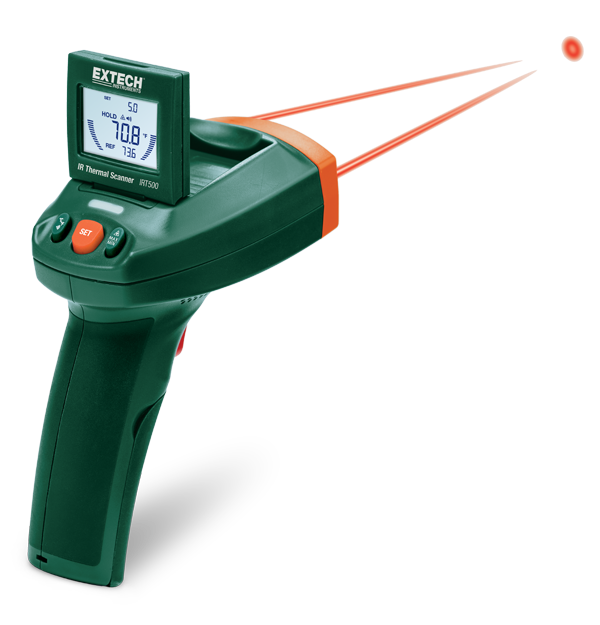

Extech IRT500

Dual Laser IR Thermal Scanner with Adjustable Display

More than just an IR Thermometer, the Extech IRT500 IR Thermal Scanner is designed with a dual laser, an audible/visual alarm feature, 5 preset threshold settings (1°, 5°, 10°, and set min/max), and 3 color LED indicators to make it easy to locate hot and cold spots quickly. Users simply point at targets and scan. The 3 color LED indicates high (red), normal (green), or low (blue) when scanning for temperature irregularities. Likewise, the audible alarm increases as temperature increases or decreases. It features a fast, 150 millisecond response for capturing spikes in temperature. The dual laser indicates ideal measuring distance where the 2 lasers converge to a 2.5 cm (1 in) target spot. Other features include a tilt adjustable LCD display with bright white backlight and dual barographs. Trigger lock function provides continuous use for scanning large areas. Comes with 9 V battery, carrying case, and user manual.

사양

일반 사양
대상비까지의 거리 20:1
목표물 설정 dual laser
방사율 0.95, fixed
색상 전환 임계값 1°, 5°, 10°,set Min, set Max
온도(IR) 최대 해상도 ±(1% of reading + 3.3 °F/1.5 °C)
온도(RTD) 0.1 °F/ °C
온도(접촉) 기본 정확도 -22 to 500 °F (-30 to 260 °C)
추가 정보
무게 5.7oz (163g)
보증 2 years
인증 CE
전원 1 × 9V battery
크기 6.6 × 3.2 × 2.3" (168 × 82 × 58mm)
