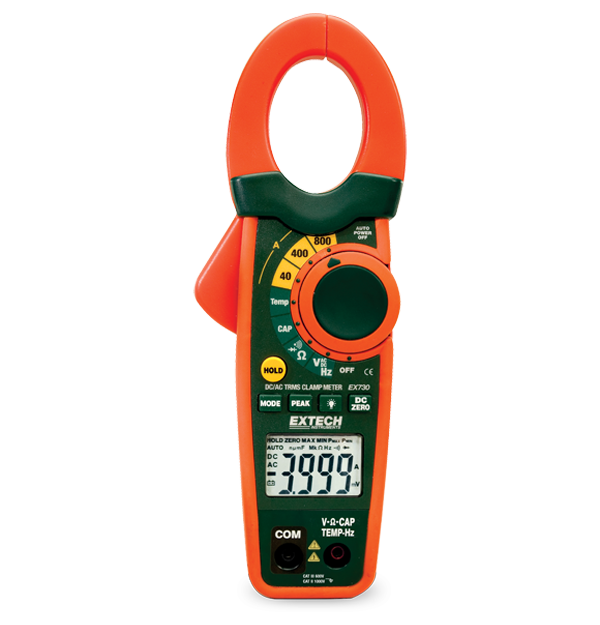

Extech EX730
800A AC/DC Clamp Meter
The Extech EX730 is an 800 A AC Clamp Meter with capacitance and frequency functions. It is capable of measuring AC/DC current and voltage, resistance, frequency, capacitance, temperature, diode, and continuity. The EX730 features double molded housing for better grip and one-handed operation, as well as a large LCD display with bright backlighting. The EX730 has a 30 mm (1.2 in) circular jaw opening for large cables (500 MCM) and comes complete with test leads, 9 V battery, Type K bead wire probe, and carrying case.
사양
| 일반 사양 | |
|---|---|
| AC 전류 | 0.01 to 800A |
| AC 전류 기본 정확도 | ±2.5% |
| AC 전압 | 0.1mV to 600V |
| AC 전압 기본 정확도 | ±1.5% |
| DC 전류 | 0.1 to 800A |
| DC 전류 기본 정확도 | ±2.5% |
| DC 전압 | 0.1mV to 600V |
| DC 전압 기본 정확도 | ±1.5% |
| 다이오드 검사 | Yes |
| 돌입 전류 | Yes |
| 연속성 | Yes |
| 온도(K형) 최대 해상도 | -4 to 1400°F (-20 to 760°C) |
| 온도(N형) | ±(3% of reading + 9°F/5°C) |
| 저항 | 0.1 to 40MΩ |
| 주파수 | 0.001 to 4kHz |
| 주파수 기본 정확도 | ±1.5% |
| 커패시턴스 | 0.001nF to 40,000µF |
| 턱 크기 | 1.2" (30mm), conductors up to 500MCM |
| 트루 RMS | Yes |
| 추가 정보 | |
|---|---|
| 무게 | 10.7 oz (303g) |
| 보증 | 2 years |
| 안전 범주 | CATIII - 600V |
| 인증 | CE, UL |
| 전원 | 1 × 9V battery |
| 크기 | 9 × 3.1 × 1.9" (229 × 80 ×49mm) |
