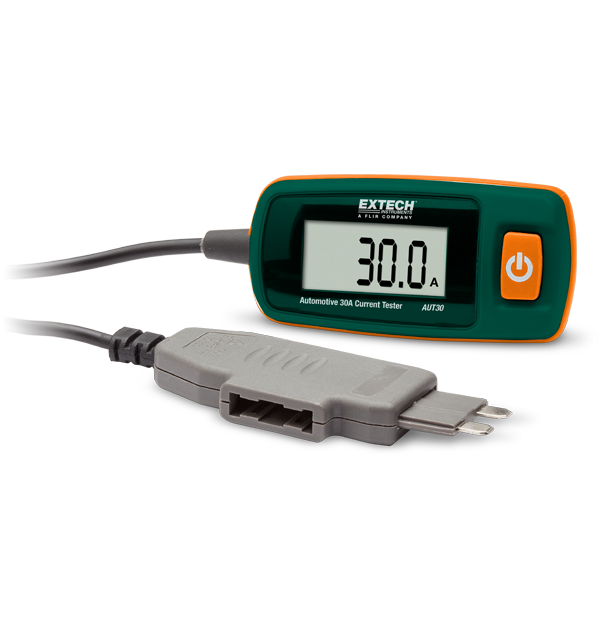

Extech AUT30
30A Current Tester
Check up to 30 Amps without breaking the circuit with the Extech AUT30 Current Tester. ATC blade connectors plug into the fuse block. It has a measuring range of 30 Amps/48 VDC (10 seconds max) with 100 mA resolution and ± a (2% + 2 digits) accuracy. Results are displayed on a 3.5-digit LCD. Includes 75 cm (29.5 in) connector cable.
사양
| 일반 사양 | |
|---|---|
| DC 전류 | 0 to 30A DC |
| DC 전류 기본 정확도 | 10mA |
| DC 전류 최대 해상도 | ±(2.0% of reading + 2 digits) |
| DC 전압 | 48V DC |
| 감지 거리 | <0.2" |
| 케이블 길이 | 71cm (2.3 ft.) |
| 추가 정보 | |
|---|---|
| 무게 | 42g (1.5 oz) |
| 보증 | 2 years |
| 인증 | CE |
| 전원 | 1 × A23G (12V) battery |
| 크기 | 159 × 25mm (6.25 × 1") |
