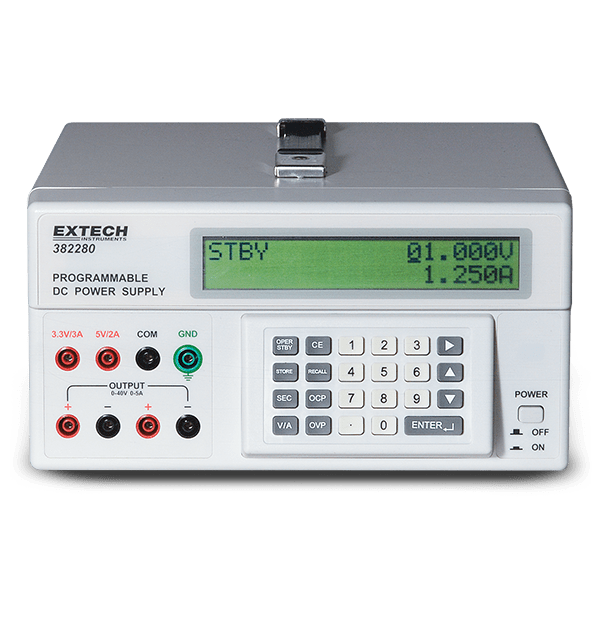

Extech 382280
Precision with Programmable 200 Watt Output DC Power Supply
The Extech 382280 is a Programmable 200 Watt DC Power Supply that has an adjustable 40 V/5 A output, plus two fixed outputs (5 V/2 A and 3.3 V/3 A) and memory for 200 setups. It features high stability with low ripple and noise, 0 to 60 second programmable overload delay timer, selectable constant current/constant voltage, and a bi-directional PC interface that allows setup and read back using virtually any PC communications program.
사양
| 일반 사양 | |
|---|---|
| 고정 출력 | 5V/2A, 3.3V/3A |
| 리플 및 노이즈 | Voltage (mVrms): 3mV Current (mArms): 3mA |
| 출력 전류 | 0 to 5A |
| 출력 전류 기본 정확도 | 0.2% ± 9mA |
| 출력 전류 최대 해상도 | 1mA |
| 출력 전압 | 0 to 40V |
| 출력 전압 기본 정확도 | 0.05% ± 9mV |
| 출력 전압 최대 해상도 | 1mV |
| 추가 정보 | |
|---|---|
| 무게 | 8.4lbs (3.8kg) |
| 보증 | 2 years |
| 인증 | CE |
| 전원 | 110 or 220VAC, 50/60Hz |
| 크기 | 12.2 × 9.9 × 5.3" (310 × 250 × 135mm) |
