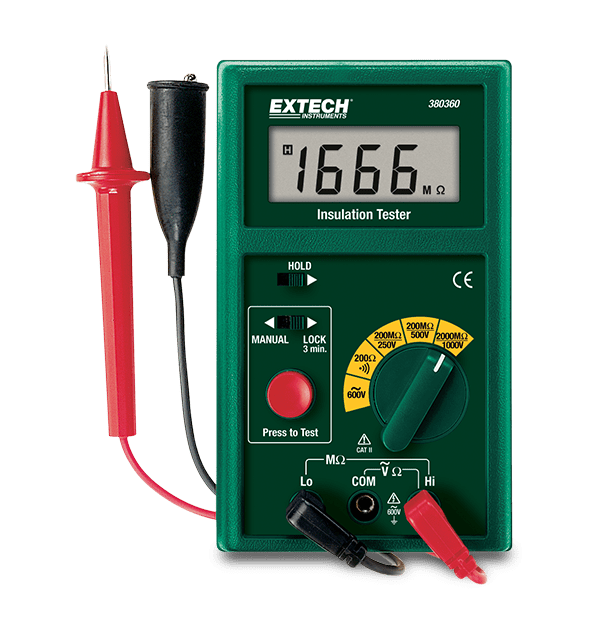

Extech 380360
Digital Megohmmeter
The Extech 380360 is a 1000 V Megohmmeter with an automatic 3 minute test. It has three test voltages of 250 V, 500 V and 1000 V, plus insulation resistance up to 2000 MΩ. Automatic discharge when the safety "Press to Test" button is released. Complete with 6 AA batteries, heavy duty 0.8 m (2.5 ft) test leads, alligator clip, large probe, and case with neck strap.
사양
| 일반 사양 | |
|---|---|
| AC 전압 | 600V |
| AC 전압 기본 정확도 | 0.8% of reading + 3 digits |
| 과부하 보호 | 2200V (< 1 min) |
| 연속성 | <100Ω |
| 저저항 | 200Ω |
| 저저항 기본 정확도 | 1% of reading |
| 저항 | 20/200Ω |
| 절연 저항 | 200M, 2000MΩ |
| 절연 저항 기본 정확도 | <1000MΩ (3% of reading + 5 digits), >1000MΩ (5% of reading + 5 digits) |
| 절연 테스트 전압 | 250V, 500V, 1000V |
| 출력 단락 전류 | 1.5 mA 0.3-0.5 mA |
| 추가 정보 | |
|---|---|
| 디스플레이 | Segment LCD |
| 무게 | 13oz (369g) |
| 보증 | 2 years |
| 안전 범주 | CAT II-600V |
| 인증 | CE |
| 전원 | 6 × AA (1.5V) batteries |
| 크기 | 3.8 × 6.3 × 2.3" (97 × 160 × 58mm) |
