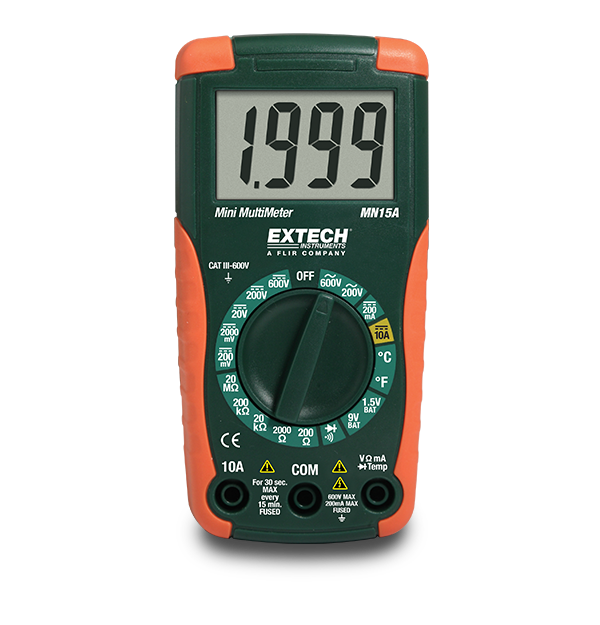

Extech MN15A
Digital Mini MultiMeter
Small on size and configured with vital functionality, the compact, manual-ranging Extech MN15A Digital Mini Multimeter is a popular choice for anyone who prefers a smaller meter they can carry in a pocket or tool belt. Handy for quick testing, use it to measure AC/DC voltage and DC current, as well resistance with functions for testing diodes and checking for continuity. Plus, the battery test function lets you quickly check the condition of 1.5 V and 9 V batteries. The MN15A comes with a built-in stand, 9 V battery, test leads, and a general purpose temperature probe.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Corriente CC | 10A |
| Precisión básica de corriente CC | ±1.2% |
| Precisión básica de temperatura (tipo N) | 0.1 ° |
| Precisión básica de tensión CA | ±1.2% |
| Precisión básica de tensión CC | ±0.5% |
| Prueba de pila | 9V & 1.5V Batteries |
| Resistencia | 20MΩ |
| Resolución básica de tensión CC | 0.1mV |
| Resolución máx. de corriente CC | 0.1mA |
| Resolución máx. de resistencia | 0.1Ω |
| Resolución máx. de temperatura (tipo K) | -4 to 1400°F (-20 to 750°C) |
| Resolución máx. de tensión CA | 0.1V |
| Temperatura (tipo N) | ±(3% of reading + 9°F/5°C) |
| Voltaje CA | 600V |
| Voltaje CC | 600V |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Categoría de seguridad | CATIV - 600V |
| Certificaciones | CE, ETL |
| Dimensiones | 5.43 × 2.83 × 1.5" (138 × 72 × 38mm) |
| Garantía | 2 years |
| Peso | 5.4oz (153g) |
Recursos y asistencia
User Manual
Manual del usuário de Extech MN15A
Datasheet
Extech MN15A-MN16A Datasheet
Certification
Extech MN15A Declaration of Conformity
User Manual
Extech MN15A User Manual
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
