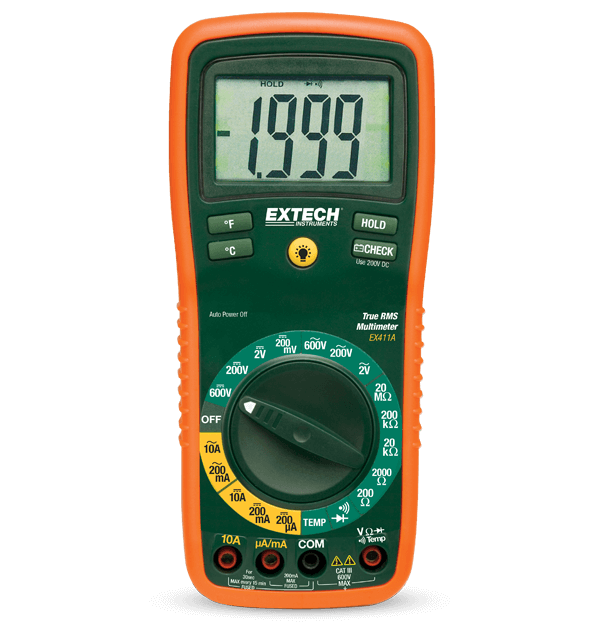

Extech EX411A
8 Function True RMS Professional MultiMeter
The Extech EX411A offers multiple functions so you can carry one meter into the field instead of several. The manual-ranging EX411A measures AC/DC voltage and current, resistance, diode, and continuity, all with ±0.5% basic accuracy. The unit has low current capability, measuring down to 0.1 µA, and features input fuse protection and mis-connection warnings. A Type K thermometer is built in for surface or air temperature measurements. Comes with CAT III test leads, stand, hanging strap, holster with built-in test lead storage, Type K bead wire temperature probe, and one 9 V battery.
Especificaciones
| Especificaciones generales (Extech) | |
|---|---|
| Continuidad | Yes |
| Corriente CA | 0.1mA to 10A |
| Corriente CC | 0.1ΩA to 10A |
| Precisión básica de tensión CC | ±0.5% |
| Prueba de diodos | Yes |
| Resistencia | 0.1Ω to 20MΩ |
| Resolución máx. de temperatura (tipo K) | -4 to 1382 °F (-20 to 750 °C) |
| RMS real | Yes |
| Voltaje CA | 1mV to 600V |
| Voltaje CC | 0.1mV to 600V |
| Detalles adicionales | |
|---|---|
| Alimentación | 1 × 9V battery |
| Categoría de seguridad | CATIII - 600V |
| Certificaciones | CE |
| Dimensiones | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| Garantía | 2 years |
| Peso | 0.75lbs (342g) |
Recursos y asistencia
User Manual
Manual del usuário de Extech EX411A
Certification
Extech EX411A Declaration of Conformity
User Manual
Extech EX411A User Manual
Datasheet
Extech EX4xxA Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
