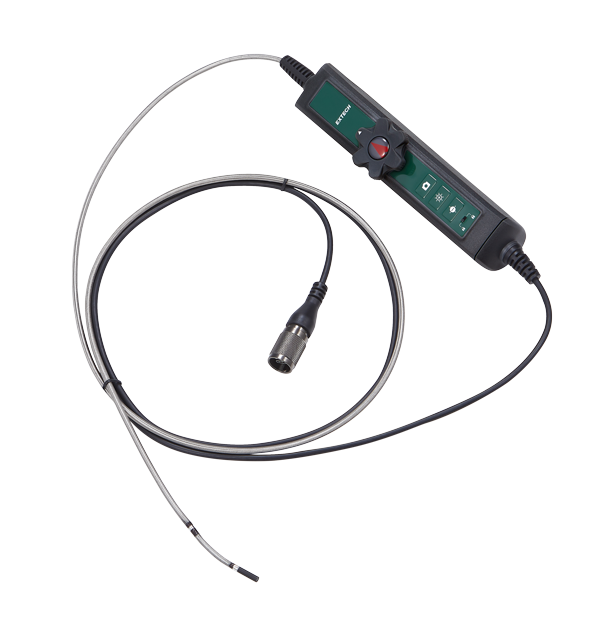

HDV7C-A2-39-HD-1

Camera Probe for HDV700-Series

HD 2-Way Articulating 3.9 mm × 1 m Camera Probe for Extech HDV700-Series High-Performance Videoscope

Specifications

Imaging & Optical
Articulation	2 ways 180°
Depth of Field	10 mm to infinity
Diameter	3.9 mm
Field of View	90˚
Field of view (FOV)	90˚
Frame Rate	30 fps
Resolution	1280 × 720

Environmental & Certifications
Certifications	CE, UKCA
Encapsulation	Probe Tip : IP67 Approved for use in brake and transmission fluid, diesel fuel, unleaded gasoline, engine oil, and CPC hydraulic fluid (46AWS)
Operating Temperature	-10˚C to 60˚C (14˚F to 140˚F)
Warranty	2 years

General
Material	Stainless steel mesh cable
Probe Length	1 m

Resources & Support

User Manual

Extech HDV7C-A2-39-HD-1 User Manual

Download
