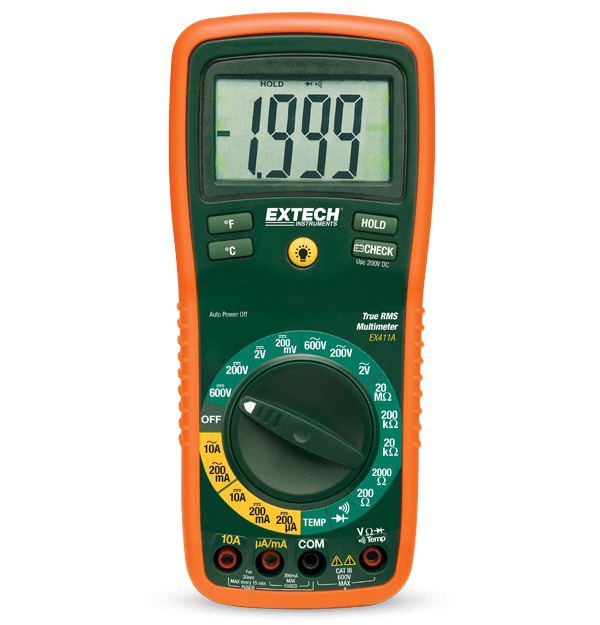

Extech EX411A
8 Function True RMS Professional MultiMeter
The Extech EX411A offers multiple functions so you can carry one meter into the field instead of several. The manual-ranging EX411A measures AC/DC voltage and current, resistance, diode, and continuity, all with ±0.5% basic accuracy. The unit has low current capability, measuring down to 0.1 µA, and features input fuse protection and mis-connection warnings. A Type K thermometer is built in for surface or air temperature measurements. Comes with CAT III test leads, stand, hanging strap, holster with built-in test lead storage, Type K bead wire temperature probe, and one 9 V battery.
Specifications
| General | |
|---|---|
| AC Current | 0.1mA to 10A |
| AC Voltage | 1mV to 600V |
| Continuity | Yes |
| DC Current | 0.1ΩA to 10A |
| DC Voltage | 0.1mV to 600V |
| DC Voltage Basic Accuracy | ±0.5% |
| Diode Test | Yes |
| Resistance | 0.1Ω to 20MΩ |
| Temperature (Type K) Max Resolution | -4 to 1382 °F (-20 to 750 °C) |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| Power | 1 × 9V battery |
| Safety Category | CATIII - 600V |
| Warranty | 2 years |
| Weight | 0.75lbs (342g) |
Resources & Support
Certification
Extech EX411A Declaration of Conformity
User Manual
Extech EX411A User Manual
Datasheet
Extech EX4xxA Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
