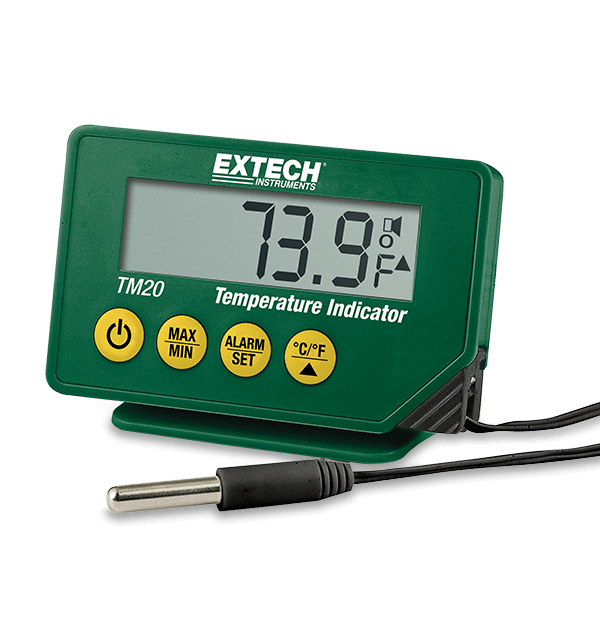

Extech TM20
Compact Temperature Indicator
The Extech TM20 is a waterproof Compact Temperature Indicator with a stainless steel probe. It includes 20 mm (0.78 in) stainless steel probe with 2.9 m (9.6 ft) cable. The TM20 measures temperature from -40°C to 70°C (-40°F to 158°F). Complete with foot stand, temperature sensor, and a CR2032 3 V button battery. CE certified.
仕様
| 一般仕様 | |
|---|---|
| ケーブルの長さ | 209m (9.6 ft.) |
| 温度（RTD） | -40 to 70 °C ( -40 to 158 °F) |
| 温度（RTD）の基本精度 | 0.5°C/0.9°F (0 to 24°C / 32 to 75°F), 1.0°C/1.8°F (-20 to -1°C and 25 to 49°C / -4 to 31°F and 76 to 120°F), 2.0°C/3.6°F (-40 to -21°C and 50 to 200°C / -40 to -5°F and 121 to 392°F) |
| 温度（RTD）の最大分解能 | 0.1 °C/ °F |
| 追加の詳細 | |
|---|---|
| IP等級 | IP65 |
| 保証 | 2 years |
| 出力 | 1 × CR2032 (3V) battery |
| 寸法 | 3.4 × 2.2 × 1.2" (86 × 57 × 30mm) |
| 認証 | CE |
| 重量 | 3.2oz (90g) |
