Discontinued
HDV7C-P28-30
Camera Probe for HDV700
This product is discontinued.
We recommend the Extech HDV750 as a great replacement.
Extech HDV750
Videoscope Plumbing Kit with 28 mm Camera, 30 m Plumbing Spool and Probe Length Locator
View ProductNeed support with the HDV7C-P28-30? Check out our support resources below.

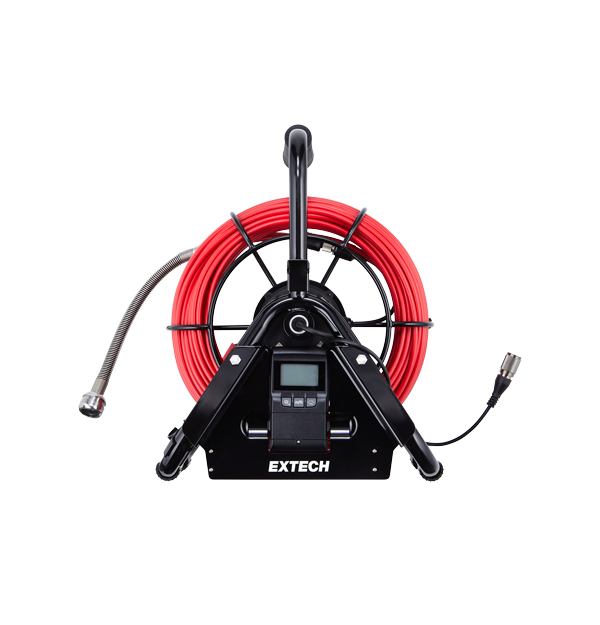

28 mm Camera Probe with 30 m Plumbing Spool for Extech HDV700
Specifications
| Imaging & Optical | |
|---|---|
| Articulation | N/A |
| Depth of Field | 10 mm to infinity |
| Diameter | 28 mm |
| Field of View | 150˚ |
| Field of view (FOV) | 150˚ |
| Frame Rate | 30 fps |
| Resolution | Probe: 640 × 480 |
| Environmental & Certifications | |
|---|---|
| Certifications | CE, UKCA |
| Encapsulation | Probe Tip : IP67 Approved for use in brake and transmission fluid, diesel fuel, unleaded gasoline, engine oil, and CPC hydraulic fluid (46AWS) |
| Operating Temperature | -10˚C to 60˚C (14˚F to 140˚F) |
| Warranty | 2 years |
| General | |
|---|---|
| Material | Fiberglass Cable |
| Probe Length | 30 m |
| System Includes | Ø100 mm brush & carrying case |
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
