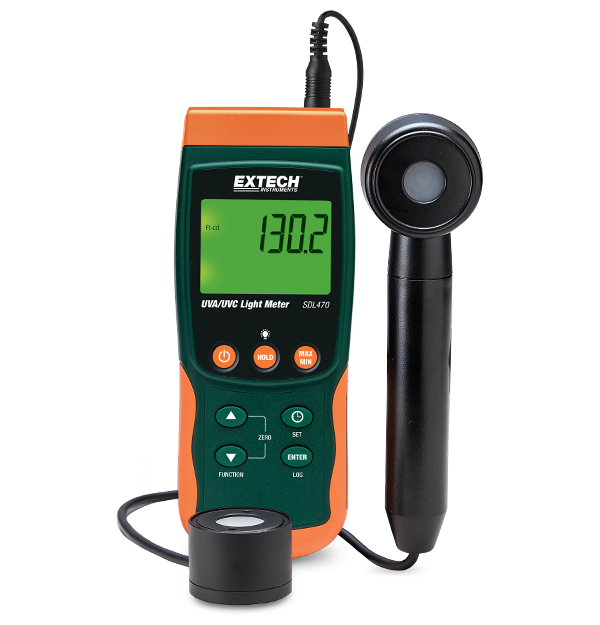

The Extech SDL470 is a UVA/UVC Light Meter and Data logger. The SDL470 can measure both long wave and short wave UV irradiance under UVA and UVC light sources respectively. This meter features a cosine correction filter, data logging to Excel® format, offset adjustment for relative measurements, Type-K/J thermocouple input for temperature measurements (probe sold separately), record/recall modes, min and max readings, and data hold plus auto power off with disable function. This product comes with a built-in tilt stand, SD memory card, UVA light sensor with protective cover, UVC light sensor, hard case, universal AC adaptor, and 6 x AA batteries.
Specifications
| General | |
|---|---|
| Frequency Bandwidth | 365nm (UVA); 254nm (UVC) |
| Memory | Manual: 99 data readings; Includes SD memory card for datalogging |
| Temperature (Type J) Basic Accuracy | -148 to 2192°F (-100 to 1200°C) |
| Temperature (Type J) Max Resolution | ±(0.4%±1.8°F/1°C) |
| Temperature (Type K) Basic Accuracy | 0.1°F/°C |
| Temperature (Type K) Max Resolution | -148 to 2372°F (-100 to 1300°C) |
| Temperature (Type N) | ±(0.4%±1.8°F/1°C) |
| Temperature (Type N) Basic Accuracy | 0.1°F/°C |
| UVA | 2mW/cm², 20mW/cm² |
| UVA Basic Accuracy | ±4% full scale |
| UVA Max Resolution | 0.001mW/cm² |
| UVC | 2mW/cm², 20mW/cm² |
| UVC Basic Accuracy | ±4% full scale |
| UVC Max Resolution | 0.001mW/cm² |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 7.2 × 2.9 × 1.9" (182 × 73 × 47.5mm) |
| Power | 6 × AA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 16.2oz (475g) |
Resources & Support
User Manual
Extech SDL470 User Manual
Certification
Extech SDL470 Declaration of Conformity
Datasheet
Extech SDL470 Datasheet
User Manual
Extech SDL470 User Manual GB
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
