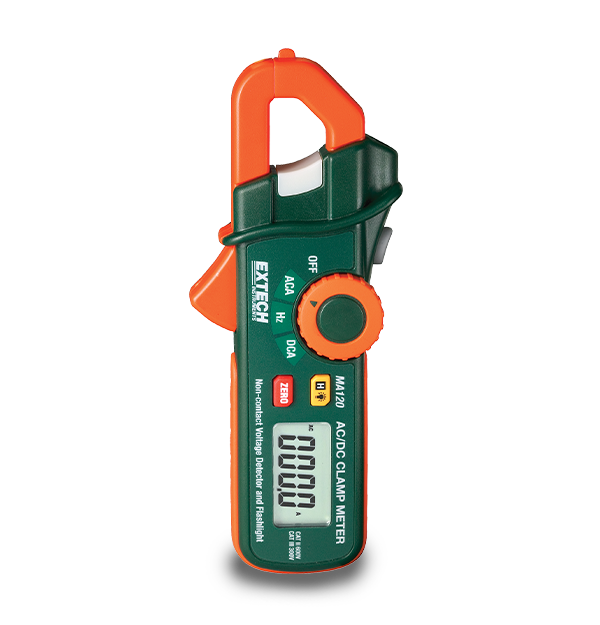

The MA120 is a 200 Amp AC/DC mini clamp meter with built-in AC voltage detector and built in LED flashlight. The meter measures Frequency up to 1 kHz with 0.01Hz resolution, auto ranges with auto power off and data hold functions. Complete with a year warranty, 2 AAA batteries and soft case.
Specifications
| General | |
|---|---|
| AC Current | 200A |
| AC Current Basic Accuracy | ±3.0% |
| AC Current Max Resolution | 100mA |
| DC Current | 200A |
| DC Current Basic Accuracy | ±3% |
| DC Current Max Resolution | 0.1A |
| Frequency | 1kHz |
| Frequency Max Resolution | 0.01Hz |
| Jaw Size | 0.7" (18mm), conductors up to 300MCM |
| Non-Contact Voltage (NCV) Detector | 120/240VAC |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 6.5 × 2.6 × 1.3" (164 × 65 × 32mm) |
| Display | 2000-count segment LCD with backlighting |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CATII - 600V, CATII - 300V |
| Warranty | 2 years |
| Weight | 6.2oz (176g) |
