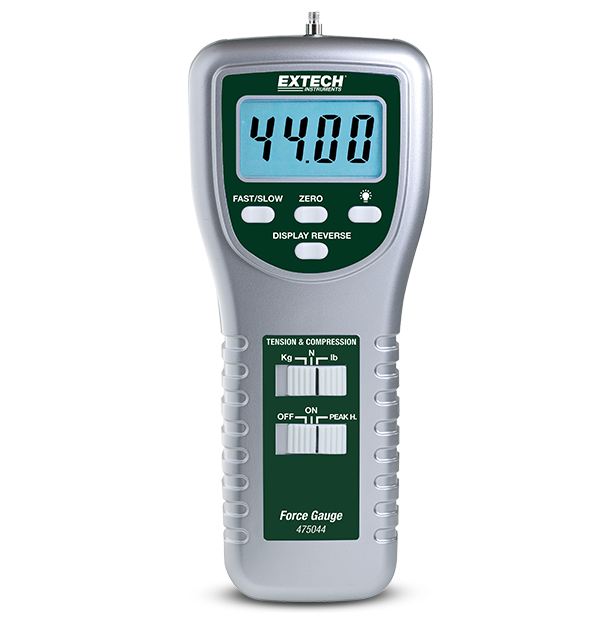

475044 is a High Capacity Force Gauge with a 5 digit LCD display and peak hold. Exclusive load cell measurement transducer. Over-range, low battery and advanced function indicators. 20kg/44.1 lbs/196.1 Newtons measurement capacity. Selectable fast/slow response times. Basic accuracy of 0.5%. Display reverses to match viewing angle. Complete with tension rod, carrying case and 4 adapters (flathead, cone, chisel and hook for tension), and 6 AA batteries.
Specifications
| General | |
|---|---|
| Force | 44lbs, 20kg, 196 Newtons |
| Force Basic Accuracy | ±(0.5%) |
| Force Max Resolution | 0.01lbs, 0.01kg, 0.05 Newtons |
| Full Scale Detection | 2.00mm |
| Overload Capacity | 30kg |
| Transducer Type | Load cell |
| Update Rate | Fast mode 0.2secs; Slow mode 0.6secs |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 8.5 × 3.5 × 1.8" (215 × 90 × 45mm) |
| Power | 6 × AA (1.5V ) batteries |
| Warranty | 2 years |
| Weight | 1.4 lbs (650g) |
Resources & Support
User Manual
Extech 475040 475044 User Manual GB
Certification
Extech 475044 Declaration of Conformity
Datasheet
Extech 475040-475044 Datasheet
User Manual
Extech 475040 475044 User Manual
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
