Discontinued

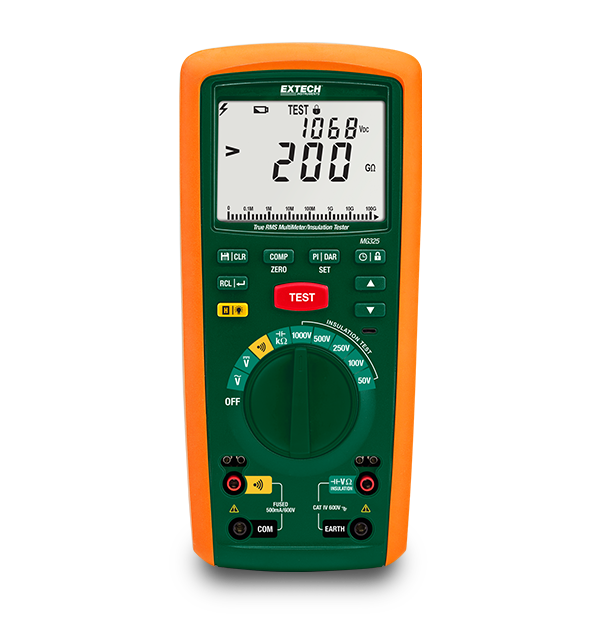

Extech MG325
CAT IV Insulation Tester/True RMS MultiMeter
The Extech MG325 combines a 200GΩ/1000 V high range insulation tester with a full-featured true RMS multimeter in a single, compact instrument. CAT IV safety rating ensures the highest level of protection.
仕様
| 一般仕様 | |
|---|---|
| AC電圧 | 600V |
| AC電圧の基本精度 | ±(1.5% of reading + 5 digits) |
| AC電圧の最大解像度 | 0.01V |
| DC電圧 | 600V |
| DC電圧の基本精度 | ±(2% of reading + 3 digits) |
| DC電圧の最大解像度 | 0.01V |
| 低抵抗 | 100Ω |
| 低抵抗の基本精度 | ±(1.5% of reading + 5 digits) |
| 低抵抗の最大解像度 | 0.01Ω |
| 周波数 | 1kHz |
| 周波数の基本精度 | ±(0.1% of reading + 3 digits) |
| 周波数の最大分解能 | 0.1Hz |
| 導通 | Yes |
| 抵抗 | 10MΩ |
| 抵抗の最大解像度 | 0.01kΩ |
| 断熱抵抗 | 50MΩ, 100MΩ, 200MΩ,500MΩ, 2000MΩ, 1GΩ, 10GΩ, 20GΩ, 50GΩ, 100GΩ, 200GΩ |
| 漏れ電流 | 2000µA |
| 漏れ電流の基本精度 | ±(10% of reading + 3 digits) |
| 漏れ電流の最大解像度 | 10µA |
| 真の実効値 | Yes |
| 絶縁抵抗の基本精度 | ±(3% of reading + 3 digits) |
| 絶縁抵抗の最大解像度 | 0.001MΩ |
| 絶縁試験電圧 | 50V, 100V, 250V, 500V, 1000V |
| 絶縁試験電圧の基本精度 | 0 to 20% |
| 電気容量 | 500 µF |
| 静電容量最大解像度 | 0.1nF |
| 追加の詳細 | |
|---|---|
| 保証 | 2 years |
| 出力 | 6 × AA (1.5V) batteries |
| 安全性カテゴリー | CATIV - 600V |
| 寸法 | 8.9 × 4.1 × 2.3" (225 × 103 × 59mm) |
| 認証 | CE, NIST |
| 重量 | 1.5lbs (0.7kg) |
