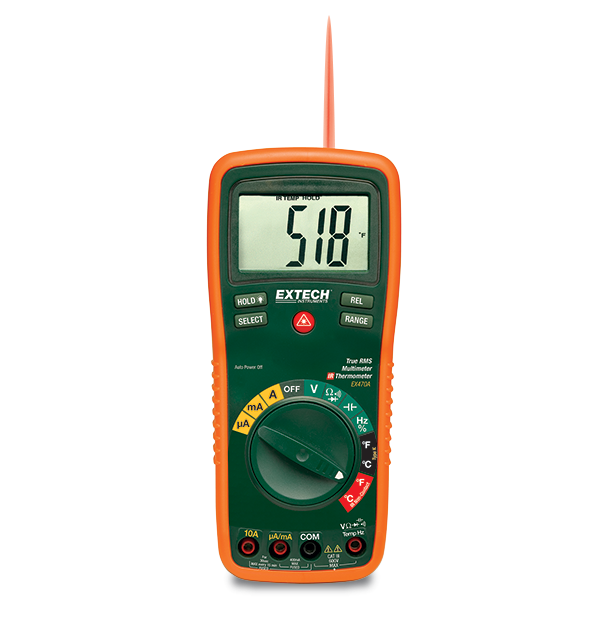

Extech EX470A
12 Function True RMS Professional MultiMeter + InfraRed Thermometer
The Extech EX470A True RMS Multimeter and Infrared Thermometer with capacitance, frequency, and duty cycle measurements and 2 Type K remote probes is the perfect meter for HVAC or plant maintenance. The IR thermometer measures surface temperature from -20°C to 270°C (-4°F to 518°F) without contact. The built-in laser pointer centers the measuring area. Its functions include AC and DC Voltage to 600 V, AC and DC current to 10 A, resistance to 40 MOhm, continuity, and diode test. It also includes a Type K thermometer for contact or air temperature measurements from -20°C to 750°C (-4°F to 1832°F). The meter comes complete with test leads, 9 V battery, protective holster, adjustable tilt stand, and a velcro hanging strap.
仕様
| 一般仕様 | |
|---|---|
| AC電圧 | 0.1mV to 600V |
| AC電流 | 0.1µA to 10A |
| DC電圧 | 0.1mV to 600V |
| DC電圧の基本精度 | ±0.3% |
| DC電流 | 0.1µA to 10A |
| ダイオード試験 | Yes |
| 周波数 | 0.001Hz to 10MHz |
| 導通 | Yes |
| 抵抗 | 0.1Ω to 40MΩ |
| 温度（IR）の基本精度 | 58 to 518°F (-50 to 270°C) |
| 温度（タイプK）の最大分解能 | -4 to 1382°F (-20 to 750°C) |
| 真の実効値 | Yes |
| 負荷サイクル | 0.1% to 99.9% |
| 電気容量 | 0.01nF to 100µF |
| 追加の詳細 | |
|---|---|
| 保証 | 3 years |
| 出力 | 1 × 9V battery |
| 安全性カテゴリー | CATIII - 600V |
| 寸法 | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| 認証 | CE, UL |
| 重量 | 0.75lbs (342g) |
