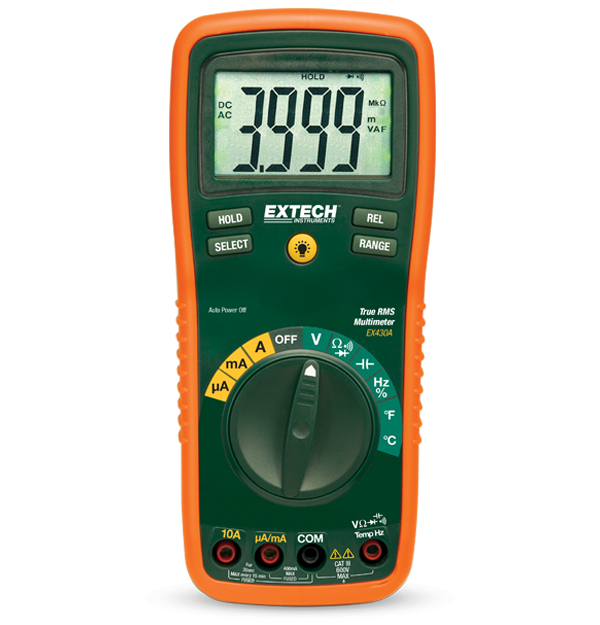

Extech EX430A
11 Function True RMS Professional MultiMeter
The Extech EX430A True RMS autoranging Multimeter (with K Type, capacitance, frequency, and duty cycle) is a professional-grade multimeter capable of performing a wide range of measurements. Functions include AC and DC voltage to 600 V, AC and DC current to 10 A, resistance to 40 MOhm, continuity, and diode test. It also includes a Type K thermometer function for contact or air temperature measurements from -20°C to 750°C (-4°F to 1832°F). Advanced functions include capacitance, frequency, and duty cycle. This meter comes complete with test leads, Type K temperature probe, 9 V battery, protective holster, adjustable tilt stand, and a velcro hanging strap.
仕様
| 一般仕様 | |
|---|---|
| AC電圧 | 1mV to 600V |
| AC電圧の基本精度 | ±0.3% |
| AC電流 | 0.1mA to 10A |
| AC電流の基本精度 | ±0.5% |
| DC電圧 | 0.1mV to 600V |
| DC電圧の基本精度 | ±0.5% |
| DC電流 | 0.1µA to 10A |
| DC電流の基本精度 | ±0.5% |
| ダイオード試験 | Yes |
| 導通 | Yes |
| 抵抗 | 0.1Ω to 20MΩ |
| 温度（タイプK）の最大分解能 | -4 to 1382°F (-20 to 750°C) |
| 真の実効値 | Yes |
| 追加の詳細 | |
|---|---|
| 保証 | 2 years |
| 出力 | 1 × 9V battery |
| 安全性カテゴリー | CATIII - 600V |
| 寸法 | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| 認証 | CE |
| 重量 | 0.75lbs (342g) |
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
