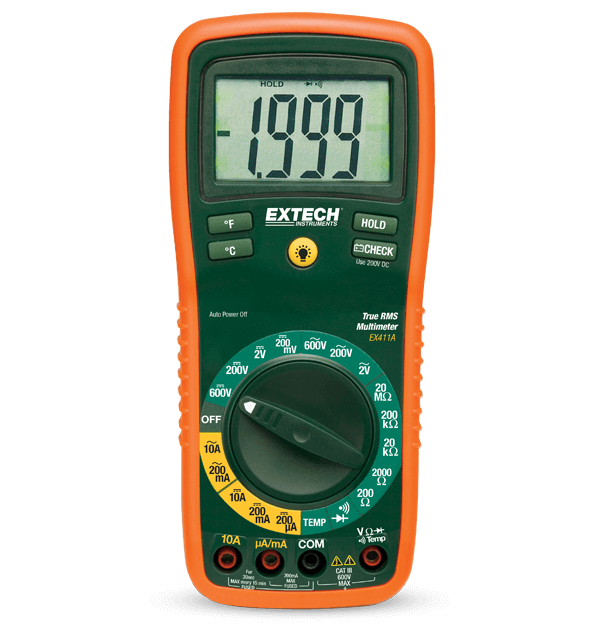

Extech EX411A
8 Function True RMS Professional MultiMeter
The Extech EX411A offers multiple functions so you can carry one meter into the field instead of several. The manual-ranging EX411A measures AC/DC voltage and current, resistance, diode, and continuity, all with ±0.5% basic accuracy. The unit has low current capability, measuring down to 0.1 µA, and features input fuse protection and mis-connection warnings. A Type K thermometer is built in for surface or air temperature measurements. Comes with CAT III test leads, stand, hanging strap, holster with built-in test lead storage, Type K bead wire temperature probe, and one 9 V battery.
仕様
| 一般仕様 | |
|---|---|
| AC電圧 | 1mV to 600V |
| AC電流 | 0.1mA to 10A |
| DC電圧 | 0.1mV to 600V |
| DC電圧の基本精度 | ±0.5% |
| DC電流 | 0.1ΩA to 10A |
| ダイオード試験 | Yes |
| 導通 | Yes |
| 抵抗 | 0.1Ω to 20MΩ |
| 温度（タイプK）の最大分解能 | -4 to 1382 °F (-20 to 750 °C) |
| 真の実効値 | Yes |
| 追加の詳細 | |
|---|---|
| 保証 | 2 years |
| 出力 | 1 × 9V battery |
| 安全性カテゴリー | CATIII - 600V |
| 寸法 | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| 認証 | CE |
| 重量 | 0.75lbs (342g) |
