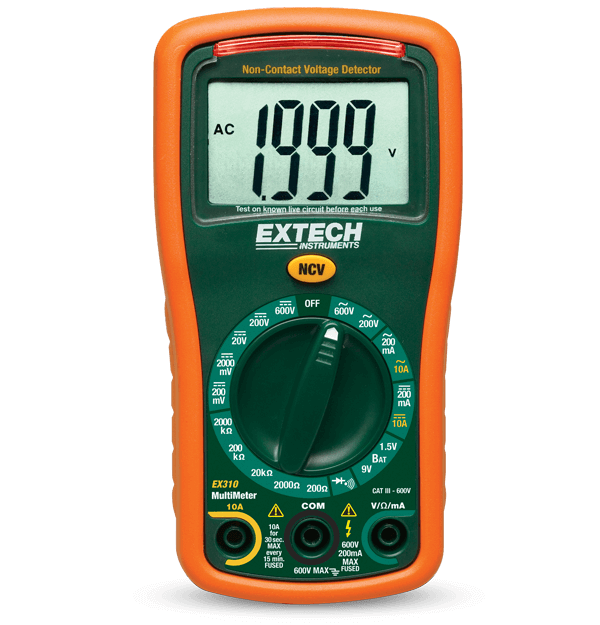

Extech EX310
9 Function Mini MultiMeter + Non-Contact Voltage Detector
The Extech EX310 is a compact manual ranging multi meter which features an extra-large 2000 count display and built-in non-contact AC voltage detector (NCV). AC/DC Voltage & Current, Resistance, Diode/Continuity measurements. Includes a battery test function (1.5 Volt and 9 Volt). The rubber holster protects the meter. UL listed Cat III – 600 Volt safety rating. Includes test leads, 9 Volt battery, and tilt stand.
仕様
| 一般仕様 | |
|---|---|
| AC電圧 | 0.1V to 600V |
| AC電流 | 0.1mA to 10A |
| DC電圧 | 0.1mV to 600V |
| DC電流 | 0.1mA to 10A |
| UVA | 0 to 1.999mW/cm², 2 to 20.00mW/cm² |
| UVAの基本精度 | ±4% full scale |
| UVAの最大分解能 | 0.001mW/cm² |
| ダイオード試験 | Yes |
| 導通 | Yes |
| 抵抗 | 0.1Ω to 2000kΩ |
| 非接触電圧（NCV）検出器 | 100 to 600VAC |
| 追加の詳細 | |
|---|---|
| ディスプレイ | 2000-count segment LCD |
| 保証 | 2 years |
| 出力 | 3 × AAA (1.5V) batteries |
| 安全性カテゴリー | CATII-1000V,CATIII-600V |
| 寸法 | 5.5 × 2.3 × 1" (141 × 58 × 25mm) |
| 認証 | CE |
| 重量 | 5.6oz (160g) |
