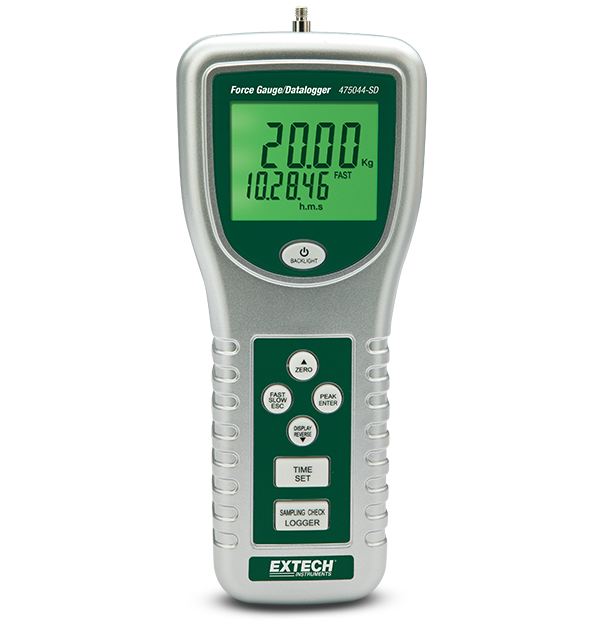

Extech 475044-SD
High Capacity Force Gauge/Datalogger
The Extech 475044-SD Digital Force Gauge/Datalogger dates, time stamps and stores up to 2 M push/pull readings on an SD card in Excel format for easy transfer to a PC. It features a 5 digit LCD display with peak hold, an exclusive load cell measurement transducer, and an overrange, low battery, and advanced function indicator. 20 kg/44 lbs/196 Newtons measurement capacity. 0.5% basic accuracy with auto power off. Complete with SD card, tension rod, carrying case and 4 adapters (flathead, cone, chisel and hook for tension), and 6 AA batteries.
仕様
| 一般仕様 | |
|---|---|
| トランスデューサタイプ | Load cell |
| フルスケール検出 | 2.00mm |
| メモリ | SD Card |
| レートの更新 | Fast mode 0.2secs; Slow mode 0.6secs |
| 力 | 44lbs, 20kg, 196 Newtons |
| 力の基本精度 | ±(0.5%) |
| 力の最大分解能 | 0.01lbs, 0.01kg, 0.05 Newtons |
| 過負荷容量 | 30kg |
| 追加の詳細 | |
|---|---|
| 保証 | 2 years |
| 出力 | 6 × AA batteries |
| 寸法 | 8.5 × 3.5 × 1.8" (215 × 90 × 45mm) |
| 認証 | CE |
| 重量 | 1.4 lbs (650g) |
