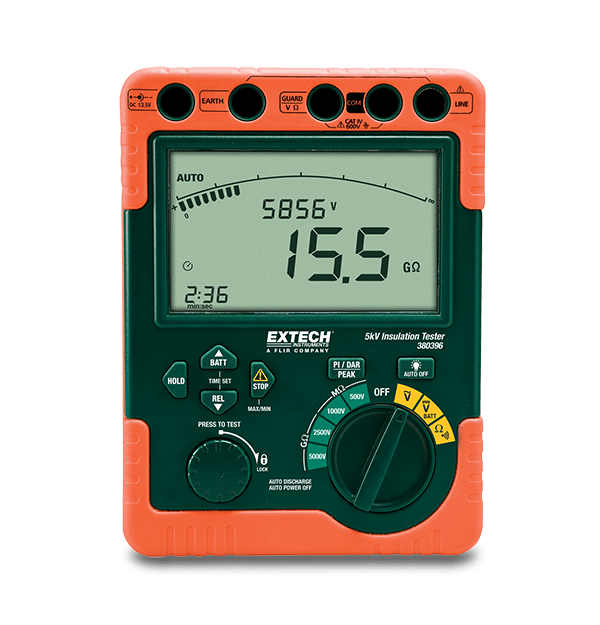

Extech 380396
High Voltage Digital Insulation Tester (220V)
With the Extech 380396, measure insulation resistance to 60 GΩ with test voltages of 500 V, 1000 V, 2500 V, and 5000 V. It features several measurements including polarization index (PI), dielectric absorption ratio (DAR), and AC/DC voltage to 600 V with a min/max function. It also has peak and relative functions, as well as a 1 to 15 minute timer function for IR measurements. Comes with test leads, eight C batteries, 220 V AC adaptor, heavy duty carrying case, and user manual.
仕様
| 一般仕様 | |
|---|---|
| AC電圧 | 0 to 600V |
| AC電圧の基本精度 | ±1% of reading |
| DC電圧 | 0 to 600V |
| DC電圧の基本精度 | ±1% of reading |
| 導通 | 50Ω |
| 抵抗 | 0 to 600Ω |
| 断熱抵抗 | 6MΩ, 60MΩ, 600MΩ, 6GΩ, 60GΩ |
| 絶縁抵抗の基本精度 | ±2.5% of reading |
| 絶縁試験電圧 | 500V, 1000V, 2500V, 5000V |
| 追加の詳細 | |
|---|---|
| ディスプレイ | Backlit segment LCD with bargraph |
| 保証 | 2 years |
| 出力 | 8 × C (1.5V) batteries, 220V AC adaptor |
| 安全性カテゴリー | CAT IV-600V |
| 寸法 | 7.8 × 5.8 × 3.4" (198 × 148 × 86mm) |
| 認証 | CE |
| 重量 | 3.2lb (1438g) |
