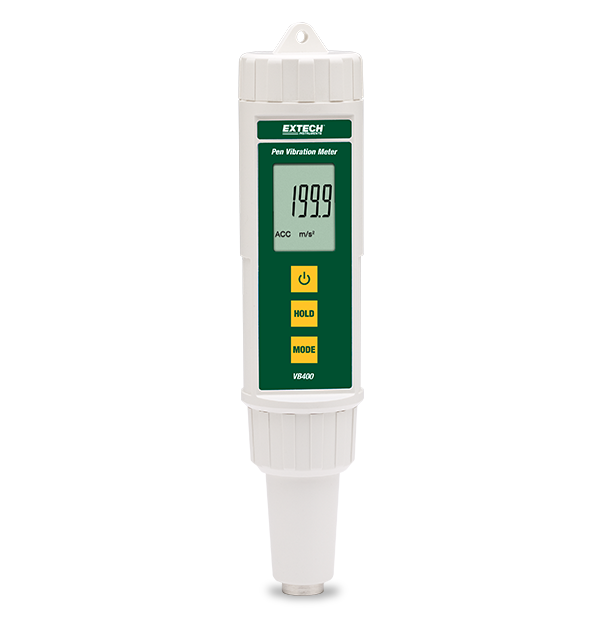

The Extech VB400 Pen Vibration Meter is designed to provide easy and accurate velocity and acceleration measurements on industrial machinery. Its measures RMS Acceleration and Velocity with metric and imperial units of measure. The VB400 has a wide frequency range from 10 Hz to 1 kHz and basic accuracy of ± (5% + 2 digits). Additional features include zero adjustment, data hold, and a low battery indicator. Water and dust resistant to IP65. Complete with test pin tip, magnetic base, 4 AAA batteries, and pouch case.
Specifiche
| Specifiche generali | |
|---|---|
| Accelerazione | 656ft/s², 200m/s², 20.39g |
| Accuratezza di base accelerazione | ±(5% of reading + 2 digits) |
| Accuratezza di base velocità | ±(5% of reading + 2 digits) |
| Larghezza di banda frequenze | 10 Hz to 1 KHz |
| Risoluzione max accelerazione | 1ft/s², 0.1m/s², 0.01g |
| Risoluzione max velocità | 0.02in/s, 0.01cm/s, 0.1mm/s |
| Velocità | 7.87in/s, 2.00cm/s, 200mm/s |
| Velocità di campionamento | Approx. 1 second |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 4 × AAA (1.5V) batteries |
| Certificazioni | CE |
| Classificazione IP | IP65 |
| Dimensioni | 6.9 × 1.6 × 1.3" (175 × 40 × 32 mm); sensing head: 9 mm diameter × 30 mm |
| Display | 20 mm × 28 mm segment LCD |
| Garanzia | 2 years |
| Peso | 0.53 lb (240 g) |
Risorse e supporto
User Manual
Manuale utente Extech VB400
User Manual
Extech VB400 User Manual
Certification
Extech VB400 Declaration of Conformity
Datasheet
Extech VB400 Datasheet
