Extech HDV-5CAM-10F
5.5mm VideoScope Camera Head

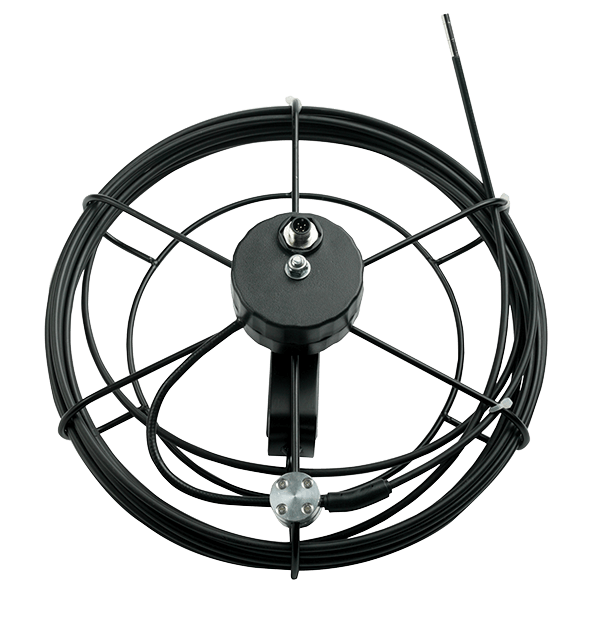

The Extech HDV-5CAM-10F is an optional camera for use with the HDV600 videoscope series. This 5.5 mm Camera Head with a long depth of field lens features a 65° field of view. Ten meter semi-rigid cable length. Minimum focus distance at 15 mm (0.59 in).
Specifiche
| Specifiche generali | |
|---|---|
| Campo visivo (FOV) | 65° |
| Diametro | 5.5mm (0.22") |
| Distanza di messa a fuoco | 6cm to ∞ (2.36" to ∞) |
| LED | 4 |
| Lunghezza | 10m (32.1') |
| Misuratori di intensità di luce | 3500 Lux at 20mm |
| Risoluzione | 640 × 480 pixels |
| Testa camera | Stainless steel housing |
| Ulteriori dettagli | |
|---|---|
| Certificazioni | CE |
| Garanzia | 1/2 year |
Risorse e supporto
User Manual
Manuale utente Extech HDV-5CAM-10F
User Manual
Extech HDV-5CAM-10F User Manual
Datasheet
Extech HDV-xTXx-HDV-xCAM Datasheet
Certification
Extech HDV-5CAM-10F Declaration of Conformity
