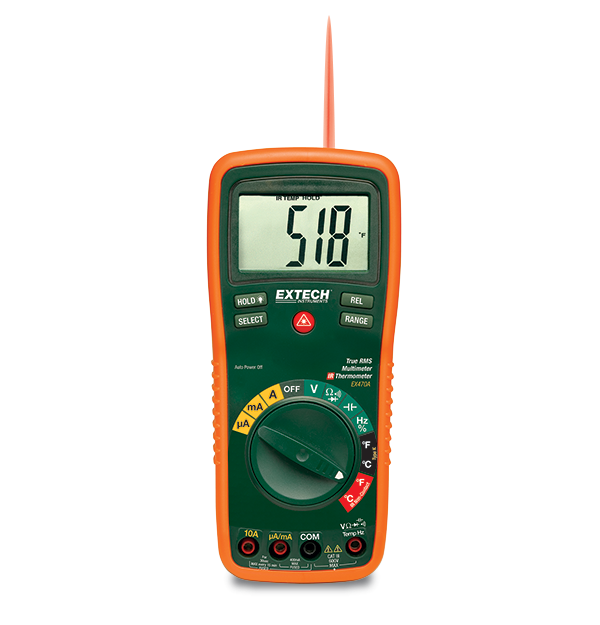

The Extech EX470A True RMS Multimeter and Infrared Thermometer with capacitance, frequency, and duty cycle measurements and 2 Type K remote probes is the perfect meter for HVAC or plant maintenance. The IR thermometer measures surface temperature from -20°C to 270°C (-4°F to 518°F) without contact. The built-in laser pointer centers the measuring area. Its functions include AC and DC Voltage to 600 V, AC and DC current to 10 A, resistance to 40 MOhm, continuity, and diode test. It also includes a Type K thermometer for contact or air temperature measurements from -20°C to 750°C (-4°F to 1832°F). The meter comes complete with test leads, 9 V battery, protective holster, adjustable tilt stand, and a velcro hanging strap.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base temperatura (IR) | 58 to 518°F (-50 to 270°C) |
| Accuratezza di base tensione CC | ±0.3% |
| Capacità | 0.01nF to 100µF |
| Ciclo di lavoro | 0.1% to 99.9% |
| Continuità | Yes |
| Corrente AC | 0.1µA to 10A |
| Corrente DC | 0.1µA to 10A |
| Frequenza | 0.001Hz to 10MHz |
| Resistenza | 0.1Ω to 40MΩ |
| Risoluzione max temperatura (tipo K) | -4 to 1382°F (-20 to 750°C) |
| Tensione AC | 0.1mV to 600V |
| Tensione DC | 0.1mV to 600V |
| Test diodi | Yes |
| True RMS | Yes |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 1 × 9V battery |
| Categoria di sicurezza | CATIII - 600V |
| Certificazioni | CE, UL |
| Dimensioni | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| Garanzia | 3 years |
| Peso | 0.75lbs (342g) |
Risorse e supporto
Certification
Extech EX470A Declaration of Conformity
Datasheet
Extech EX4xxA Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
