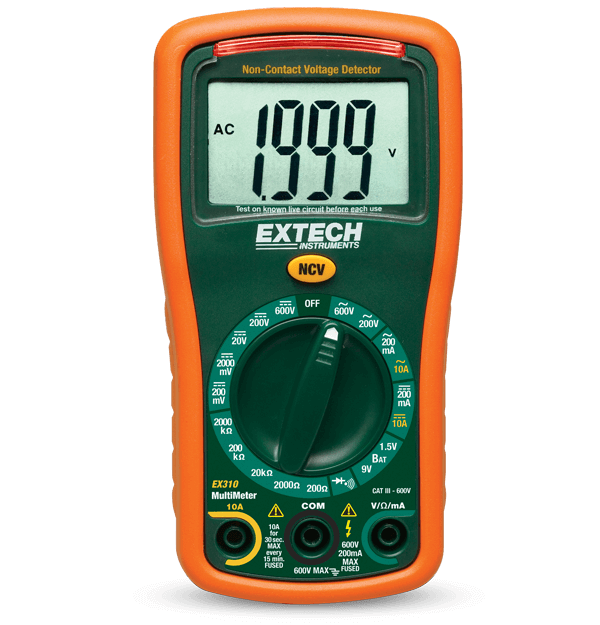

The Extech EX310 is a compact manual ranging multi meter which features an extra-large 2000 count display and built-in non-contact AC voltage detector (NCV). AC/DC Voltage & Current, Resistance, Diode/Continuity measurements. Includes a battery test function (1.5 Volt and 9 Volt). The rubber holster protects the meter. UL listed Cat III – 600 Volt safety rating. Includes test leads, 9 Volt battery, and tilt stand.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base UVA | ±4% full scale |
| Continuità | Yes |
| Corrente AC | 0.1mA to 10A |
| Corrente DC | 0.1mA to 10A |
| Resistenza | 0.1Ω to 2000kΩ |
| Rilevatore di tensione senza contatto (NCV) | 100 to 600VAC |
| Risoluzione max UVA | 0.001mW/cm² |
| Tensione AC | 0.1V to 600V |
| Tensione DC | 0.1mV to 600V |
| Test diodi | Yes |
| UVA | 0 to 1.999mW/cm², 2 to 20.00mW/cm² |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 3 × AAA (1.5V) batteries |
| Categoria di sicurezza | CATII-1000V,CATIII-600V |
| Certificazioni | CE |
| Dimensioni | 5.5 × 2.3 × 1" (141 × 58 × 25mm) |
| Display | 2000-count segment LCD |
| Garanzia | 2 years |
| Peso | 5.6oz (160g) |
Risorse e supporto
User Manual
Manuale utente Extech EX310
Certification
Extech EX310 Declaration of Conformity
User Manual
Extech EX310 User Manual
Datasheet
Extech EX3xx Datasheet
