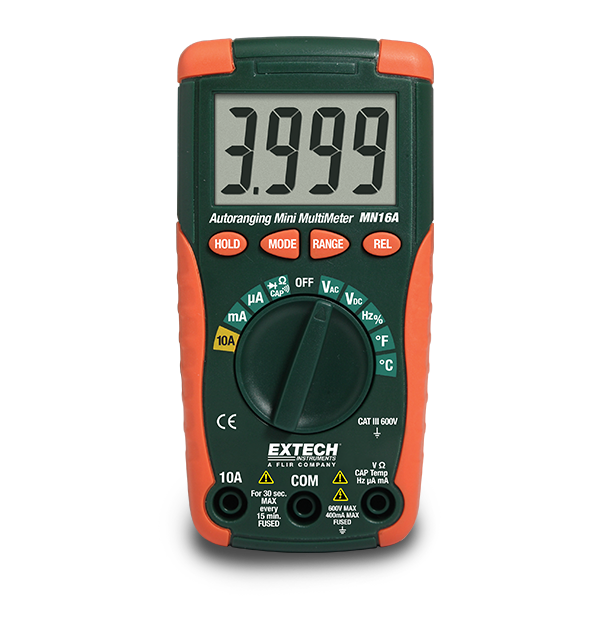

Extech MN16A
Digital Mini MultiMeter
This product is discontinued.
We recommend the Extech MN36 as a great replacement.
Need support with the Extech MN16A? Check out our support resources below.
The Extech MN16A is a Digital Mini Multimeter. It measures AC/DC voltage and current, resistance, capacitance, frequency, continuity, diode test, Type K temperature, and duty cycle. In addition, it has an auto power off with disable feature. Measurements are viewed on a large, easy to read LCD display. Product complete with two AAA batteries, general purpose Type K bead wire probe, and test leads.
Spécifications
| Caractéristiques générales | |
|---|---|
| Capacitance | 100µF |
| Courant CA | 10A |
| Courant CC | 10A |
| Fréquence | 5MHz |
| Précision de base de la fréquence | ±1.2% |
| Précision de base de la température (Type N) | 0.1 ° |
| Précision de base de la tension CA | ±1.5% |
| Précision de base de la tension DC | ±1.2% |
| Précision de base du courant CA | ±1.8% |
| Précision de base du courant DC | ±1.5% |
| Précision de base du rapport cyclique | ±1.2% |
| Rapport cyclique | 0.1 to 99.9% |
| Résistance | 40MΩ |
| Résolution max. de capacité | 0.01nF |
| Résolution max. de la fréquence | 0.001Hz |
| Résolution max. de la résistance | 0.1Ω |
| Résolution max. de la température (Type K) | -4 to 1400°F (-20 to 750°C) |
| Résolution max. de la tension CA | 0.1mV |
| Résolution max. de la tension DC | 1mV |
| Résolution max. du courant CA | 0.1µA |
| Résolution max. du courant DC | 0.1µA |
| Température (Type N) | ±(3% of reading + 9°F/5°C) |
| Tension CA | 600V |
| Tension CC | 600V |
| Détails supplémentaires | |
|---|---|
| Alimentation | 2 × AAA (1.5V) batteries |
| Catégorie de sécurité | CATIV - 600V |
| Certifications | CE, ETL |
| Dimensions | 5.43 × 2.83 × 1.5" (138 × 72 × 38mm) |
| Garantie | 2 years |
| Poids | 5.4oz (153g) |
