Discontinued
Extech PQ3470-12
1200A Datalogging Power Analyzer Kit

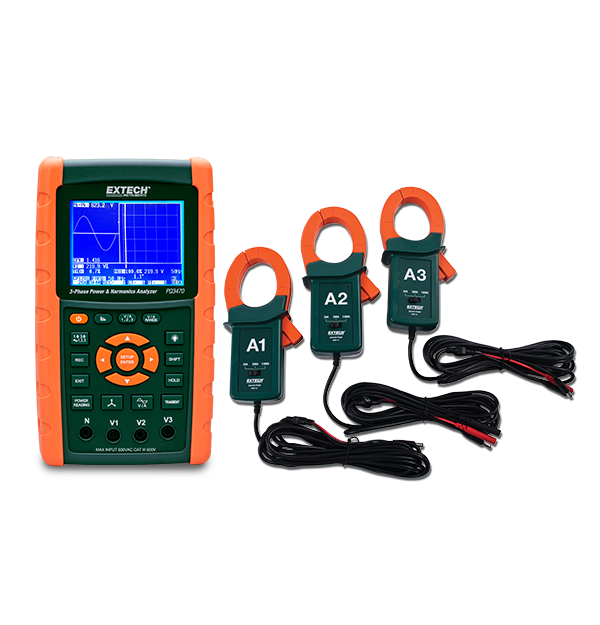

The Extech PQ3470-12 is a 3-phase graphical power and harmonics analyzer/datalogger capable of logging up to 30,000 sets of measurements on a removable SD memory card. The meter features a 3-phase voltage or current unbalanced ratio (VUR, AUR) and unbalanced factor, a wide sampling rate range (2 seconds to 2 hours), and a built in clock and calendar. It is capable of capturing transient events such as dip, swell, and outage with programmable threshold (%). Complete with 4 voltage leads with alligator clips, 8 AA batteries, SD card, 100 V - 240 V AC adaptor, three 1200 A current probes, and a case.
仕様
| 一般仕様 | |
|---|---|
| AC電圧 | 600.0V |
| AC電圧の基本精度 | ±(0.5% of reading) |
| AC電流 | 1200A |
| AC電流の基本精度 | ±(0.5% of reading) |
| クレスト係数 | 1.00 to 99.99 |
| クレスト係数の基本精度 | ±(5%) |
| ピークAC電圧の基本精度 | ±(5%) |
| ピークAC電流の基本精度 | ±(5%) |
| メモリ | 30,000 readings (2GB SD memory Card) |
| 位相 | -180 ° to +180° |
| 位相の基本精度 | ±1° |
| 入力範囲 | 200mV, 300mV, 500mV, 1V, 2V, 3V (user-selectable) |
| 入力範囲の基本精度 | ±(0.5% of reading) |
| 力率 | 0.00 to 1.00 |
| 力率の基本精度 | ±0.04 |
| 周波数 | 45Hz to 65Hz |
| 周波数の基本精度 | ±0.1Hz |
| 有効電力 | 9.999MW |
| 有効電力の基本精度 | ±(1.0% of reading) |
| 有効電力エネルギー | 0.0kWh to 9.999MWH |
| 有効電力エネルギーの基本精度 | ±(2.0% of reading) |
| 無効電力 | 9.999MVAR |
| 無効電力の基本精度 | ±(1.0% of reading) |
| 無効電力エネルギー | 0.0kVARh to 9.999MVARH |
| 無効電力エネルギーの基本精度 | ±(1.0% of reading) |
| 皮相電力 | 9.999MVA |
| 皮相電力の基本精度 | ±(1.0% of reading) |
| 皮相電力エネルギー | 0.0KVAh to 9.999MVAH |
| 皮相電力エネルギーの基本精度 | ±(2.0% of reading) |
| 真の実効値 | Yes |
| 高調波 | 1 to 50th |
| 高調波の基本精度 | ±2% (1 to 20); ±4% (21 to 31) |
| 追加の詳細 | |
|---|---|
| 保証 | 2 years |
| 出力 | 8 × AA (1.5V) batteries |
| 安全性カテゴリー | CATIII - 600V |
| 寸法 | 8.86 × 4.92 × 2.52" (225 × 125 × 64mm) |
| 認証 | CE, UL |
| 重量 | 2.2lbs (1010g) |
