Discontinued

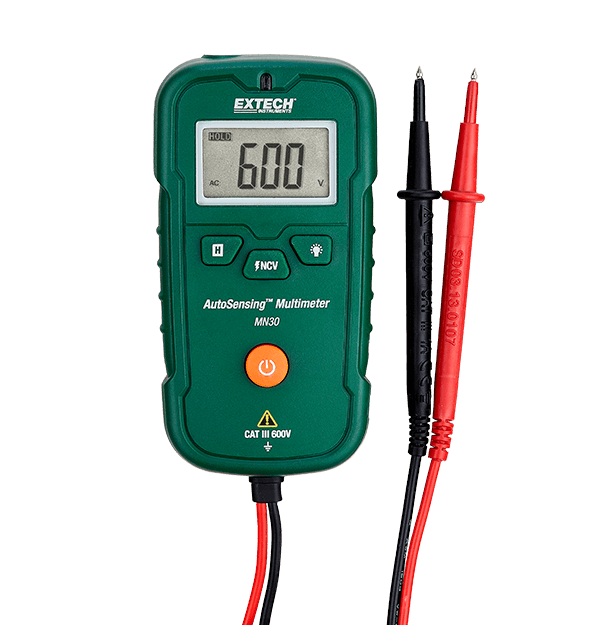

Extech MN30
True RMS AutoSensing™ Multimeter + NCV
The Extech MN30 is a convenient pocket multimeter with an AutoSensing™ feature. The AutoSensing™ feature enables the meter to recognize inputs and automatically switch to the correct mode of operation (i.e. voltage to resistance measurements). The true RMS AC voltage measurement allows for accurate readings regardless of waveforms. The built in, non-contact voltage (NCV) detector allows for quick detection of live voltage. Convenient LED flashlight illuminates dimly lit area.
仕様
| 一般仕様 | |
|---|---|
| AC電圧 | 600V |
| AC電圧の基本精度 | ±(1.5% of reading + 3 digits) |
| AC電圧の最大解像度 | 0.01V |
| DC電圧 | 600V |
| DC電圧の基本精度 | ±(1.5% of reading + 3 digits) |
| DC電圧の最大解像度 | 0.01V |
| 導通 | <30Ω (beeper) |
| 抵抗 | 1Ω to 10MΩ |
| 抵抗の最大解像度 | 1Ω |
| 真の実効値 | Yes |
| 非接触電圧（NCV）検出器 | 50 to 600VAC |
| 追加の詳細 | |
|---|---|
| 保証 | 2 years |
| 出力 | 2 × AAA (1.5V) batteries |
| 安全性カテゴリー | CATIII - 600V |
| 寸法 | 4.8 × 2.6 × 1.4" (123 × 65 × 35mm) |
| 認証 | CE, ETL |
| 重量 | 50V to 600V |
