Discontinued

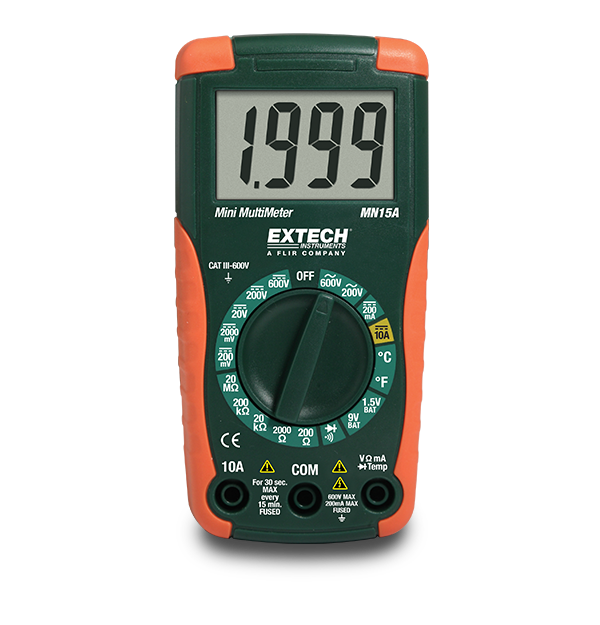

Extech MN15A
Digital Mini MultiMeter
Small on size and configured with vital functionality, the compact, manual-ranging Extech MN15A Digital Mini Multimeter is a popular choice for anyone who prefers a smaller meter they can carry in a pocket or tool belt. Handy for quick testing, use it to measure AC/DC voltage and DC current, as well resistance with functions for testing diodes and checking for continuity. Plus, the battery test function lets you quickly check the condition of 1.5 V and 9 V batteries. The MN15A comes with a built-in stand, 9 V battery, test leads, and a general purpose temperature probe.
仕様
| 一般仕様 | |
|---|---|
| AC電圧 | 600V |
| AC電圧の基本精度 | ±1.2% |
| AC電圧の最大解像度 | 0.1V |
| DC電圧 | 600V |
| DC電圧の基本精度 | ±0.5% |
| DC電圧の最大解像度 | 0.1mV |
| DC電流 | 10A |
| DC電流の基本精度 | ±1.2% |
| DC電流の最大解像度 | 0.1mA |
| バッテリー試験 | 9V & 1.5V Batteries |
| 抵抗 | 20MΩ |
| 抵抗の最大解像度 | 0.1Ω |
| 温度（タイプK）の最大分解能 | -4 to 1400°F (-20 to 750°C) |
| 温度（タイプN） | ±(3% of reading + 9°F/5°C) |
| 温度（タイプN）の基本精度 | 0.1 ° |
| 追加の詳細 | |
|---|---|
| 保証 | 2 years |
| 出力 | 1 × 9V battery |
| 安全性カテゴリー | CATIV - 600V |
| 寸法 | 5.43 × 2.83 × 1.5" (138 × 72 × 38mm) |
| 認証 | CE, ETL |
| 重量 | 5.4oz (153g) |
